Shrimp Aqua Fish Feed Machine , Fish Food Machine Screw Diameter φ90 Power 37KW

Price Negotiable
Price: Negotiable
MOQ: one set
Delivery Time: 5-10 working days after deposit
Brand: Strongwin
Product Description



Screw Diameter φ90 Power 37KW Aqua Fish Shrimp Feed Production Line Price

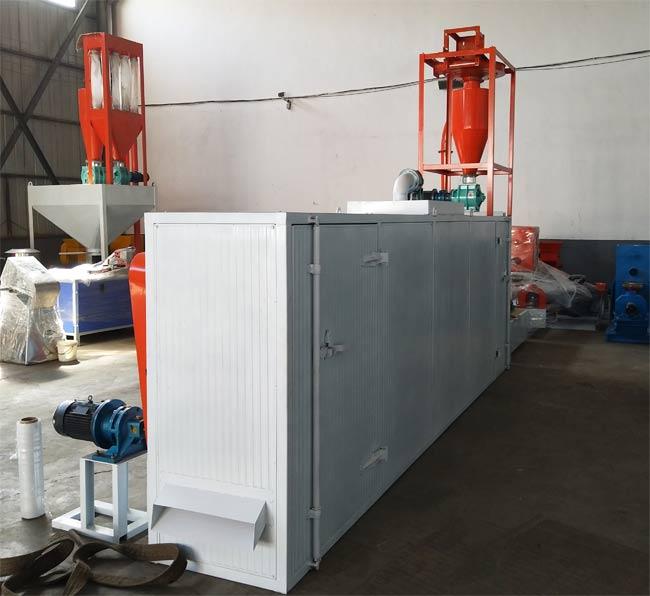

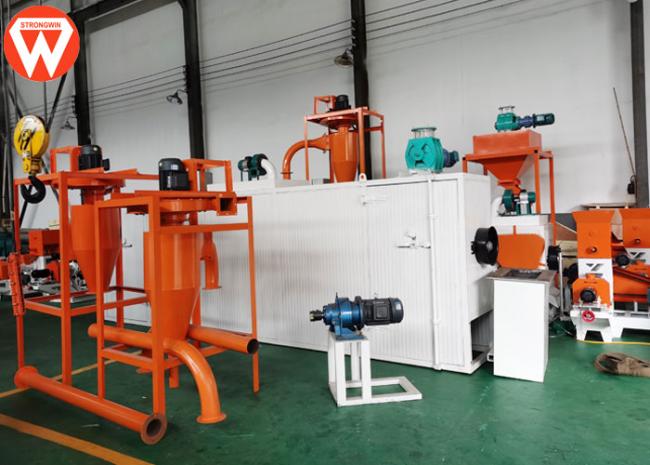

Introduction of Fish Feed Production Line



Our fish feed pellet production line is the complete procedure of feed pellet production with capacity of 300-400kg/h. This line is designed for making commercial pellets from corn, maize, grass, grains, protein, molasses and so on, and final pellets with different shapes, unique flavor, rich nutrients and fine texture, are widely used as aquatic and pet feed like goldfish, tropical fish, catfish, shrimps, dog, cat and etc.. Super automation control, high production efficiency, our fish feed production line is the best choice for medium and big sized feed mills and breeding farms. Complete pellet production lines with different capacities are also available to meet customers’ specific demands.



Features of Feed Pellet Production Line



1. Advanced technology, high capacity and low energy consumption.

2. The modular structure is convenient for assembly and disassembly, facilitating the shipment and installation.

3. PLC controlled, alarm device is available. The operation is simple and convenient.

4. Final pellet shapes and sizes can be various by changing the mould. For fish and shrimp feed pellet, the floating time in water can be adjusted by the extrusion degree adjustment.

5. Processing is processed at high temperature instantaneous process, greatly reducing the decomposition of nutrients in feed, at the same time improve the protein (through the degeneration of protein) and starch (through starch paste) digestibility, to improve the palatability of the product.

6. In order to ensure the quality and the capacity, there is the special pressure-increased device. Besides, the electric heating device improve the feed expansion rate.

Technical Parameters of Fish Feed Production Line



  Name Capacity Power Dimension
1 Crusher 300-400kg/h 11kw 1350*930*1250mm
2 Dusting collection, bag dust collector and storage bin Capacity of storage bin 0.5-1.0m³ 0.75kw*2 1200*1000*3200mm
3 Screw elevator 300-400kg/h 1.5kw 3000*820*630mm
4 Horizontal mixer 100kg/batch,every batch is 10min. 3kw 1530*820*1420mm
5 Screw elevator 300-400kg/h 1.5kw 3000*820*630mm
6 Extruder
DGP90-B
300-350kg/h Main Power:
37kw
Cutting Power:
0.8kw
Feeding Power:
0.6kw
2100*1450*1350mm
7 Air conveyor 300-400kg/h Fan power: 2.2kw
Discharge power: 0.75kw
750*650*1850mm
8 Mesh belt dryer 200-300kg/h Heating power:
24kw
Mesh Belt Power:
2.2kw
Fan Power:
0.55kw
3200*1200*1850mm
9 Air conveyor 200-400kg/h Fan power: 2.2kw
Discharge power: 0.75kw
750*650*1850mm
10 Spraying Machine 300-500kg/h Main Power: 0.75kw
Oil Pump Power: 0.37kw
5000*750*1550mm
11 Air conveyor 200-400kg/h Fan power: 2.2kw
Discharge power: 0.75kw
750*650*1850mm
12 Counter current cooler 100-150kg/batch,10- 15min 3kw 1150*900*2000mm
13 Air conveyor 200-400kg/h Fan power: 2.2kw
Discharge power: 0.75kw
750*650*1850mm
14 Packing scale ≤300 bag/h.
1-25kg/bag
0.75kw 2650*800*2740mm
15 Power control system
