22Kw 3Mm Pellet Chicken Feed Pelletizer Machine For Quail Feed Manufacturing
22 Kw 3 Mm Pellet Chicken Feed Pelletizer Machine For Quail Feed Manufacturing

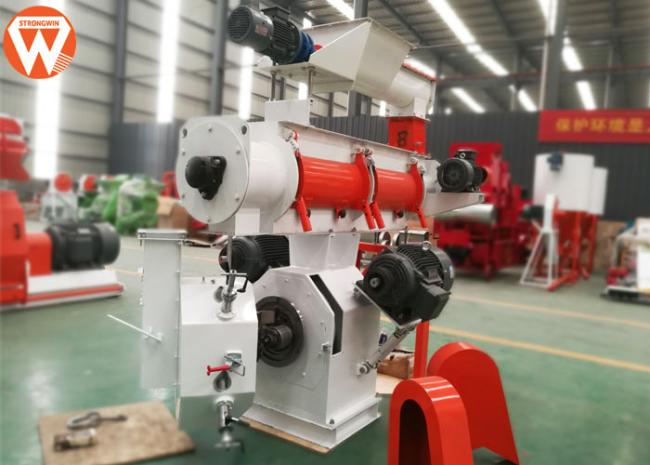

Brief Introduction of feed mill pellet machine
SZLH250 ring die feed pellet mill is one of the key machines in feed pellet production line, which is used to be made the feed pellets from raw materials such as cereals (soybean, maize,corn, grain,sorghum,corn flour , wheat flour etc) and Coarse fiber( wheat bran, corn stalk, soybean meal,grass meal,rice husk, grass, groundnut shell, etc )
SZLH250 feed pelletizer machine Advantage
1. Low maintenance cost, safety and stability of transmission, flexible transmission, little vibration, smooth granular, suitable for ordinary livestock and poultry feed production;
2. Granulating machine base by the national standard steel plate welding, surface sandblasting anti-corrosion treatment, long life;
3. The spindle is equipped with overload protection device, feeding the safe and stable;
4. Equipped with two sets of knife components ; equipped with safety interlock device of the machine back for protect the pellet mill;
5.With the standard Siemens motor and selectable force feeding equipment
Technical Parameters
| Items | SZLH250 |
| Production Capacity | 1.5-2.5t/h |
| Power of Main Motor | 22kw |
| Power of Feeding Screw Motor | 0.75 KW |
| Power of conditioner Motor | 1.5 KW |
| Diameter of ring die | Φ250mm |
| Speed of ring die(r/min) | 300rpm |
| Speed of feeding screw | 12-120rpm |
| Speed of stirrer | |
| Pellet specification | φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm |
| Amount of roller | 2 |
| Diameter of roller | Φ110mm |
| Shaping rate of pellet | ≥ 95% |
| Pulverization rate of pellet | ≤12% |
| Stability of pellet in the water | ≥20min |
| Noise (dB(A)) | ≤85dB(A) |
| Working temperature of ring die | ≤85℃ |
| Working pressure of steam | 0.3Mpa |
| Steam consumption(t/h) | 0.05 |
| Temperature of steam(℃) | 130-150℃ |
| Shape dimension | 2250*1430*2040mm |
| Machine weight | |
| Voltage | 3phase 380V,50Hz Can be customized) |
| Control cabinet | Included |
