Chicken Feed Pellet Machine High Output 15T/H 132Kw High Efficiency Energy Saving
High Output 15T/H 132Kw 1 -12 Mm Pellet Diameter Chicken Feed Pellet Production Machine
Applied range of chicken feed pellet production machine

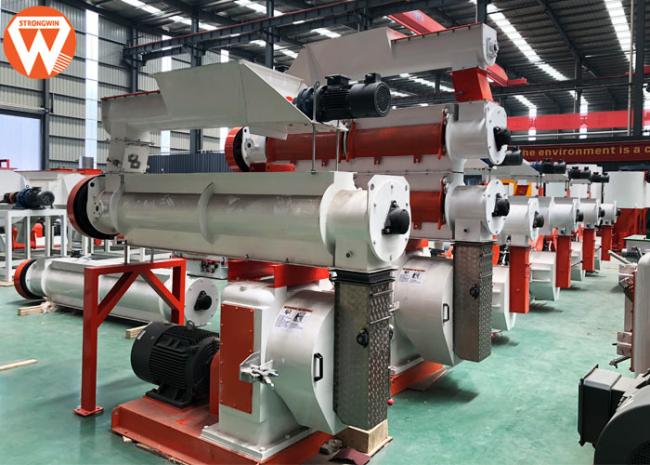

SZLH series Pellet Mil takes both advantages of belt and gear machines, improve the weakness, and meanwhile make the pellet production more efficient, faster and save more energy, which has made great contribution to pellet mill.
Currently it has been formed pelletizing series including livestock and poultry feed, ruminant feed and aquatic feed.
Advantage of SZLH chicken feed pellet production machine
1. Main drive adopts high accuracy gearbox for high efficiency.
2. Full stainless steel increased conditioning device ensure high quality of feed pellet.
3. Frequency conversion (Electromagnetic speed control) feeder, with overload protection device,equipped strong magnetic security device.
4. High output, low noise, convenient operation and maintenance.
5. Main parts of the bearing and standard parts are imported.
Technical Parameters of chicken feed pellet production machine
| Items | SZLH508 |
| Production Capacity | 15t/h |
| Power of Main Motor | 132kw |
| Power of Feeding Screw Motor | 1.5kw |
| Power of conditioner Motor | 5.5kw |
| Diameter of ring die | Φ508mm |
| Speed of ring die(r/min) | 287r/min |
| Speed of feeding screw | 12-120rpm |
| Speed of stirrer | 350r/min |
| Pellet specification | φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm |
| Amount of roller | 2 |
| Diameter of roller | Φ222mm |
| Shaping rate of pellet | ≥ 95% |
| Pulverization rate of pellet | ≤12% |
| Stability of pellet in the water | ≥20min |
| Noise (dB(A)) | ≤90dB(A) |
| Working temperature of ring die | ≤85℃ |
| Working pressure of steam | 0.1-0.4Mpa |
| Steam consumption(t/h) | ≥1 |
| Temperature of steam(℃) | 130-150℃ |
| Voltage | 3phase 380V,50Hz Can be customized) |
| Control cabinet | Included |
