Customized Voltage Animal Feed Pellet Making Machine 1.5 - 12mm Final Pellet Size
Zambia Chicken Feed Pellet Machine Poultry Feeding Pellet Machine

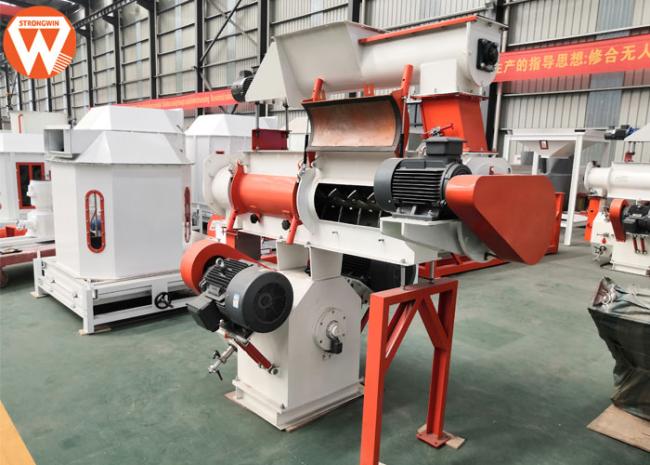

Features of SZLH250 Poultry Feeding Pellet Machine
1. Driven by variable frequency motor, the feeder can be adjusted automatically within a certain scope according to the production;
2. The interlock device, outer machine discharging device and over-load protection device work together to ensure the safety and reliability;
3. Magnetic separation and removal mechanisms are configured to prevent the iron impurities from entering into the suppression of granulation chamber.
4. The cooking time and result are highly improved by the extended stainless steel feeding conditioner with the axial inlet steam.
5. The circulating lubrication oil system is specially designed to ensure the bearings in good condition.
6. The ordinary conditioner, thermal insulation conditioner or double-shaft differential conditioner are options according to your requirements.
Introduction and Application of Poultry Feeding Pellet Machine
SZLH250(capacity is 1.5-2.5t/h) ring die feed pellet machine. Can be single used or apply to animal feed pellet line.
Make pellets for chicken, bird, duck, rabbit, pig, cattle, cow, sheep, horse etc. Popular among Customers. Can equipped force-feeding device for Customers.
Technical Parameters of Poultry Feeding Pellet Machine
| Items | SZLH250 |
| Production Capacity | 1.5-2.5t/h |
| Power of Main Motor | 22kw |
| Power of Feeding Screw Motor | 0.75 KW |
| Power of conditioner Motor | 1.5 KW |
| Diameter of ring die | Φ250mm |
| Speed of ring die(r/min) | 300rpm |
| Speed of feeding screw | 12-120rpm |
| Speed of stirrer | |
| Pellet specification | φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm |
| Amount of roller | 2 |
| Diameter of roller | Φ110mm |
| Shaping rate of pellet | ≥ 95% |
| Pulverization rate of pellet | ≤12% |
| Stability of pellet in the water | ≥20min |
| Noise (dB(A)) | ≤85dB(A) |
| Working temperature of ring die | ≤85℃ |
| Working pressure of steam | 0.3Mpa |
| Steam consumption(t/h) | 0.05 |
| Temperature of steam(℃) | 130-150℃ |
| Shape dimension | 2250*1430*2040mm |
| Machine weight | |
| Voltage | 3phase 380V,50Hz Can be customized) |
| Control cabinet | Included |
