60KW Chicken Poultry Feed Production Line Belt Type
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15-30 working days
Brand:
Strongwin
Product Description
60KW Chicken Poultry Feed Production Line Belt Type
Description of Poultry Chicken Animal Feed Production Line
About SZLH250 animal feed pellet line, Our factory supply plan A and plan B for Customers choose.
Feed pellet processing line craft:
Plan A: Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Screening & Grading → Pellet Packing

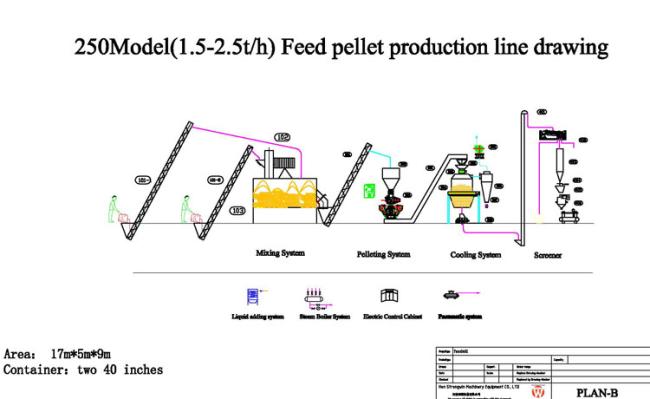

Plan B: Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet crumbler → Rotary grading screen → Pellet Packing
Both the two plans are Simple operate and small land area. Popular among Customers at home and abroad.
Technical parameters of Poultry Chicken Animal Feed Production Line
| No. | Product | Type | Power(KW) |
| 1.Raw materials receiving and crushing and mixing system | |||
| 101-1 | Screw Conveyor | TLSS16 | 2.2 |
| 101-2 | Screw Conveyor | TLSS20 | 3 |
| 103 | Imitation grinder (including iron remover) | SFPZ56*30 | 18.5 |
| 104 | U-shaped ribbon horizontal mixer | LHY1.0 | 7.5 |
| 2.Pelleting system | |||
| 201 | Screw Conveyor | TLSS20 | 3 |
| 202 | To be granulated bin (including window) | 1.0m³ | |
| 203 | Pellet Machine(include control box) | SZLH250 | 11*2+2.2+0.75 |
| 3.Cooling system | |||
| 301 | Skirt belt conveyor | QBPS400 | 2.2 |
| 302 | Buffer bucket | 0.2m³ | |
| 303 | Stainless steel air shutter | GFY250 | 1.1 |
| 304 | Counter Flow Cooler | SKLN1.0 | 0.75 |
| 305 | Air Blower | 4-72No4A | 5.5 |
| 306 | Unloader | XL60 | |
| 307 | Wind shut | GFY215 | 0.75 |
| 308 | Crumbler machine | SSLG15*80 | 5.5 |
| 4.Screening and packaging system | |||
| 401 | Bucket elevator | TDTG26/18 | 2.2 |
| 402 | Rotary grading screen | SFJH80*2d | 1.5 |
| 403 | Finished product warehouse | 2m³ | |
| 404 | Pneumatic gate | ||
| 405 | Buffer bucket | ||
| 406 | Packing scale with sewing machine | 2.2 | |
| Optional | Simple oil filling system (including pipes and nozzles) | SYVT32 | 1.5 |
| Air compression system | 3 | ||
| Boiler with link system | 0.3t/h | 3 | |
| Price | Welcome contact us for latest price | ||
