Waterproof 50mm Lens Thermal Clip On , Intelligent Coloration Thermal Imaging Scope
Waterproof 50mm Lens Thermal Clip On , Intelligent Coloration Thermal Imaging Scope
Thermal Front Clip ON
▼ SMALL, LIGHTWEIGHT DESIGN

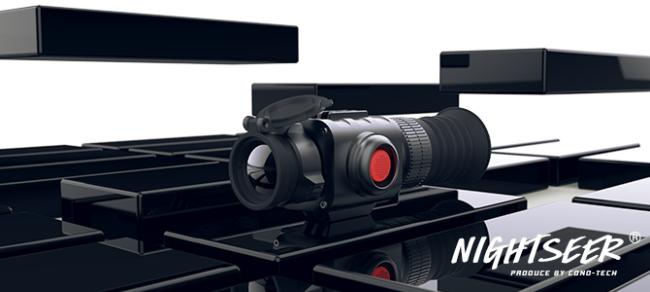

Small and lightweight, the NightSeer is designed to fit comfortably in front of your optical day sight for 24-hour weapon sighting applications.
▼ THUMBSTICK SYSTEM CONTROLLER
Our fully ruggedized, weatherproof, multidirectional thumbstick control comes standard. Unlike most conventional buttons, the NightSeer controls are large and easy to find in complete darkness.
▼ INTELLIGENT COLORATION PALETTE
The NightSeer comes with an easy-to-control polarity mode that lets you switch among three options. Why limit yourself to traditional White hot /black hot. With intelligent coloration, you can pick up your target in a much easy way!
▼ DIGITAL FOCUS CONTROLIMAGE ENHANCEMENT
Digital Focus Control allows you to not only focus your picture to your optimum setting; it allows you to sharpen your overall picture for extreme detail.
| Thermal Imager Scope NightSeer 350 Series Technical Data Sheet |
|
| NS350-C | |
| Microbolometer | |
| Type | Uncooled |
| Resolution, pixels | 384×288 |
| Frame Rate, Hz | 50 |
| Pixel size, um | 17 |
| NETD | less than 50mk |
| Optical Characteristics | |
| Objective Lens | 50mm, F/1.1 |
| Magnification, X | 1 |
| Zoom | 2x/PIP/4x |
| Eye Relief, mm | 24mm |
| Dioptre Adjustment, D | / |
| FOV | 7.4°×5.6° |
| Close-up range,m | 5 |
| Display | |
| Type | OLED |
| Resolution, pixel | 1024×768 |
| Power Supply | |
| Battery Type | 2XCR123 |
| Power Supply | 3.6~7.2 |
| External Power Supply | 5v USB |
| Operation Time on a battery set(standard version),h | 5 |
| Operation Time on external battery pack(standard version),h(13000mAh) | 44 |
| Video recorder(optional) | |
| Video/Photo format | avi/jpg |
| Built-in memory(optional) | 32G |
| Wifi Channel(optional) | |
| Frequency | 2.4 |
| Reception range,m | 15 |
| Physical Parameters | |
| Degree of Protection | IP67 |
| Operation Temperature | —25°C~+50°C |
| Storage Temperature | —40°C~+70°C |
| Shock and Vibration | 1000g/ms |
| MTBF | More than 800h |
| Weight without batteries,g | 425 |
| Dimension, mm | 167×65×67 |
It is our mission to continue to design, build, test and ship the very best optoelectronic devices on the market.
We understand that, in some cases, lives may depend on the performance of our products, that is why every unit that leaves our facility must pass tough quality control standards testing.
