35mm Lens NS335C Thermal Clip ON With 1024*768 OLED Display And 50Hz Frame Rate
35mm Lens NS335C Thermal Clip ON With 1024*768 OLED Display And 50Hz Frame Rate
Description
The NightSeer clip-on is designed to become one with your optical day sight, both on the battlefield and on the hunting field. The thermal scope's NO-SHOT ZERO feature makes it simple to verify boresight when attached.
Features
▼ Thumbsticksystem controller
▼ No-shot zero sight-seamless integration
▼ Digtal focus control image enhancement

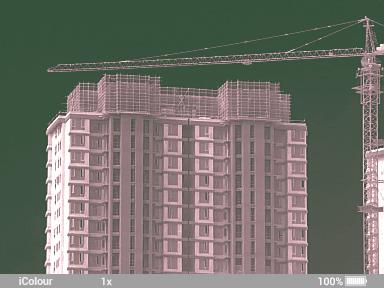

▼ Intelligent coloration
▼ Nighttime shooting advantages
▼ Wide range of operating temperatures

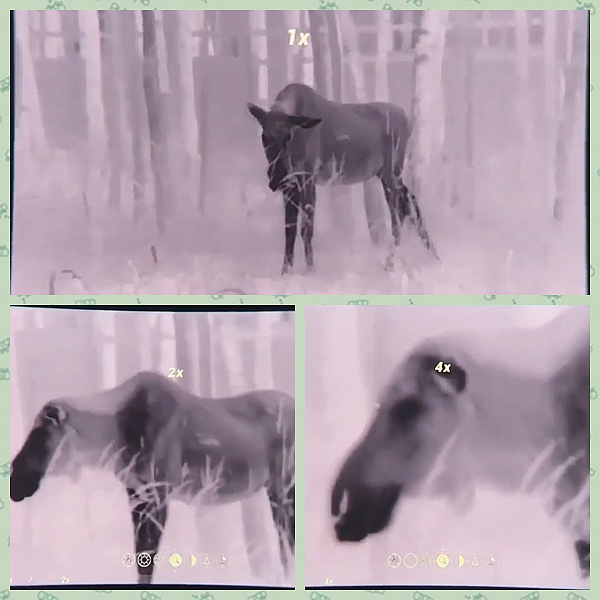

▼ 1 x optical ,2 x optical and 4 x digital zoom,PIP
| Thermal Imager Scope NightSeer335 Series Technical Data Sheet |
|
| NS335-C | |
| Microbolometer | |
| Type | Uncooled |
| Resolution, pixels | 384×288 |
| Frame Rate, Hz | 50 |
| Pixel size, um | 17 |
| NETD | less than 50mk |
| Optical Characteristics | |
| Objective Lens | 35mm, F/1.1 |
| Magnification, X | 1 |
| Zoom | 2x/PIP/4x |
| Eye Relief, mm | 24mm |
| Dioptre Adjustment, D | / |
| FOV | 10.6°×8.0° |
| Close-up range,m | 5 |
| Display | |
| Type | OLED |
| Resolution, pixel | 1024×768 |
| Power Supply | |
| Battery Type | 2XCR123 |
| Power Supply | 3.6~7.2 |
| External Power Supply | 5v USB |
| Operation Time on a battery set(standard version),h | 5 |
| Operation Time on external battery pack(standard version),h(13000mAh) | 44 |
| Video recorder(optional) | |
| Video/Photo format | avi/jpg |
| Built-in memory(optional) | 32G |
| Wifi Channel(optional) | |
| Frequency | 2.4 |
| Reception range,m | 15 |
| Physical Parameters | |
| Degree of Protection | IP67 |
| Operation Temperature | —2°C~+50°C |
| Storage Temperature | —40°C~+70°C |
| Shock and Vibration | 1000g/ms |
| MTBF | More than 800h |
| Weight without batteries,g | 400 |
| Dimension, mm | 150×65×67 |
