Thermal Imaging Sight NightSeer 350R
Whatever you’re looking to do - versatility, reliability, and functionality. NightSeer-R Thermal Imaging Sight will help you get it done. Packing the latest in thermal imaging tech that makes images from heat instead of light, you’ll be able to see more of your surroundings than ever.
Find the features that are right for you :
◆ Based on the proven 17Um microbolometer core, the NightSeer thermal hunting sight is an ideal product for force protection, border patrol officers, police SWAT officers, and special operations forces
◆ Offers superiors clarity, versatility, reliability, functionality and value

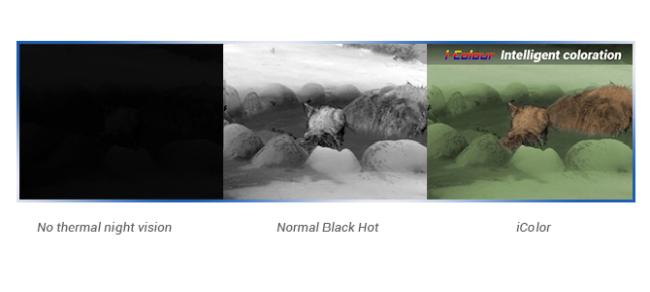

◆ Intelligent Coloration, The NIGHTSEER has Intelligent coloration technology. Intelligent coloration allows the user to better bring out the target or the background depending on conditions.
◆ Limited 2-year warranty
SPECIFICATION :
| Technical Data Sheet of Thermal Imager NightSeer335/350 Series | |
| NS350-R | |
| Microbolometer | |
| Type | Uncooled |
| Resolution, pixels | 384×288 |
| Frame Rate, Hz | 50 |
| Pixel size, um | 17 |
| NETD | less than 50mk |
| Optical Characteristics | |
| Objective Lens | 50mm, F/1.1 |
| Magnification, X | 2.7 |
| Zoom | 2x/PIP/4X |
| Eye Relief, mm | 60mm |
| Dioptre Adjustment, D | ±5 |
| FOV | 7.4°×5.6° |
| Close-up range,m | 5 |
| Display | |
| Type | OLED |
| Resolution, pixel | 1024×768 |
| Detection Range (1.7m target) | 1800 |
| Recognition Range (1.7m) | 600 |
| Detection Range (2.3m target) | 2400 |
| Recognition Range (2.3m) | 800 |
| Reticle | |
| Accuracy(per pixel) | 0.43MOA |
| Click range(x,y) | 165 MOA |
| Power Supply | |
| Battery Type | 2XCR123 |
| Power Supply | 3.6～7.2 |
| External Power Supply | 5v USB |
| Operation Time on a battery set(standard version),h | 5 |
| Operation Time on external battery pack(standard version),h(13000mAh) | 44 |
| Video recorder (optional) | |
| Video/Photo format | avi/jpg |
| Built-in memory(optional) | 32G |
| Wifi Channel(optional) | |
| Frequency | 2.4 |
| Reception range,m | 15 |
| Physical Parameters | |
| Degree of Protection | IP67 |
| Operation Temperature | —25°C～+50°C |
| Storage Temperature | —40°C～+70°C |
| Shock and Vibration | 1000g/ms |
| MTBF | More than 800h |
| Weight without batteries,g | 415 |
| Dimension, mm | 193×65×67 |
