Outdoor Hunting Compact Thermal Clip On , Lightweight 1024*768 OLED Heat Thermal Scope
Outdoor Hunting Compact Thermal Clip On, Lightweight 1024*768 OLED Heat Thermal Scope
The NightSeer NS335C thermal clip on converts your existing day scope to thermal and provides excellent target acquisition and aiming capabilities varmint hunter, military, law enforcement, or security personnel. The NightSeer thermal clip on simply mounts in front of your own standard day optical sight, allows the user to maintain consistent eye relief and shooting position, and because the user views his own day scope’s reticle which he familiar with, no training is required.
Features

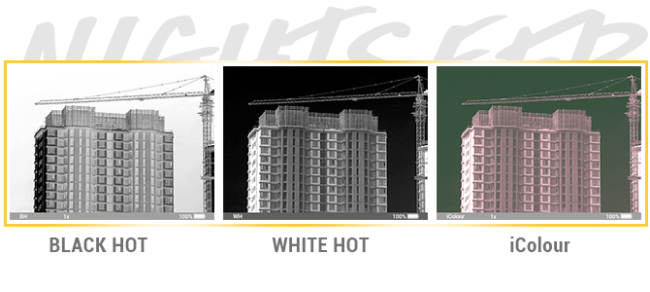

▼ Intelligent Coloration Palette, Most thermal sights have one choice for black-hot/white hot commonly referred to as polarity. The NightSEER has Intelligent coloration technology. Intelligent coloration allows the user to better bring out the target or the background depending on conditions.
▼ Ergonomic design with five-position thumbstick for one-hand operation
▼ Display type: 1024X768
▼ Limited 2-year warranty
Thermal Imager Clip On Nightseer 335C Specification
| Microbolometer | |
| Type | Uncooled |
| Resolution, pixels | 384×288 |
| Frame Rate, Hz | 50 |
| Pixel size, um | 17 |
| NETD | less than 50mk |
| Optical Characteristics | |
| Objective Lens | 35mm, F/1.1 |
| Magnification, X | 1 |
| Zoom | 2x/PIP/4x |
| Eye Relief, mm | 24mm |
| Dioptre Adjustment, D | / |
| FOV | 10.6°×8.0° |
| Close-up range,m | 5 |
| Display | |
| Type | OLED |
| Resolution, pixel | 1024×768 |
| Power Supply | |
| Battery Type | 2XCR123 |
| Power Supply | 3.6~7.2 |
| External Power Supply | 5v USB |
| Operation Time on a battery set(standard version),h | 5 |
| Operation Time on external battery pack(standard version),h(13000mAh) | 44 |
| Video recorder(optional) | |
| Video/Photo format | avi/jpg |
| Built-in memory(optional) | 32G |
| Wifi Channel(optional) | |
| Frequency | 2.4 |
| Reception range,m | 15 |
| Physical Parameters | |
| Degree of Protection | IP67 |
| Operation Temperature | —2°C~+50°C |
| Storage Temperature | —40°C~+70°C |
| Shock and Vibration | 1000g/ms |
| MTBF | More than 800h |
| Weight without batteries,g | 400 |
| Dimension, mm | 150×65×67 |
Thermal Clip On Quality Control
We understand that lives may depend on the performance of our products, that is why every unit that leaves our facility must pass tough quality control standards testing.
It is our mission to continue to design, build, test and ship the very best optoelectronic devices on the market.
