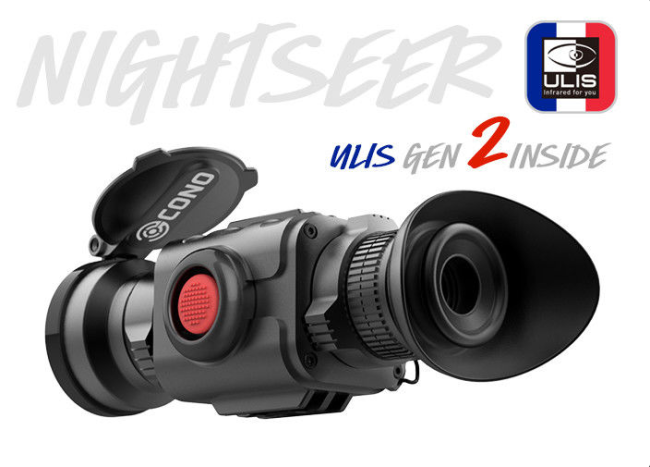

Outdoor Hunting Night Vision Sight , 50mm Lens French Core Heat Vision Monocular
Outdoor Hunting Night Vision Sight, 50mm Lens French Core Heat Vision Monocular
The Outdoor Hunting Night Vision Sight NightSeer Thermal Monocular mainly used for hunting, surveillance and search & rescue with lightweight and easy to use convenience. Fogproof, dustproof and waterproof protection and a frost-resistant OLED display keep the NightSeer performing flawlessly in extreme conditions with temperatures ranging from -40° to 60°. Adult-size heat signature detection up to 1800m.
Features:
-
Designed for quick and easy to use: switch-on and ready-to-use
-
Compact and lightweight camera system
-
Ergonomic design with five-position thumbstick for one-hand operation
-
Intelligent coloration for better recognition of targets
- High image frequency of 50Hz, no ITAR
- Stadiametric rangefinding reticle makes determining precise distances fast, easy, reliable and repeatable
- Fully-functional wireless control
| Technical Data Sheet of Thermal Imager NightSeer350 Series | |
| NS350-H | |
| Microbolometer | |
| Type | Uncooled |
| Resolution, pixels | 384×288 |
| Frame Rate, Hz | 50 |
| Pixel size, um | 17 |
| NETD | less than 50mk |
| Optical Characteristics | |
| Objective Lens | 50mm, F/1.1 |
| Magnification, X | 2.62 |
| Zoom | 2x/PIP/4x |
| Eye Relief, mm | 15mm |
| Dioptre Adjustment, D | ±5 |
| FOV | 7.4°×5.6° |
| Close-up range,m | 5 |
| Display | |
| Type | OLED |
| Resolution, pixel | 1024×768 |
| Detection Range (1.7m target) | 1800 |
| Recognition Range (1.7m) | 600 |
| Detection Range (2.3m target) | 2400 |
| Recognition Range (2.3m) | 800 |
| Power Supply | |
| Battery Type | 2XCR123 |
| Power Supply | 3.6～7.2 |
| External Power Supply | 5v USB |
| Operation Time on a battery set (standard version),h |
5 |
| Operation Time on the external battery pack (standard version),h(13000mAh) |
44 |
| Video recorder(optional) | |
| Video/Photo format | avi/jpg |
| Built-in memory(optional) | 32G |
| Wifi Channel(optional) | |
| Frequency | 2.4 |
| Reception range,m | 15 |
| Physical Parameters | |
| Degree of Protection | IP67 |
| Operation Temperature | —25℃～+50℃ |
| Storage Temperature | —40℃～+70℃ |
| Shock and Vibration | 1000g/ms |
| MTBF | More than 800h |
| Weight without batteries,g | 410 |
| Dimension, mm | 167×65×67 |
