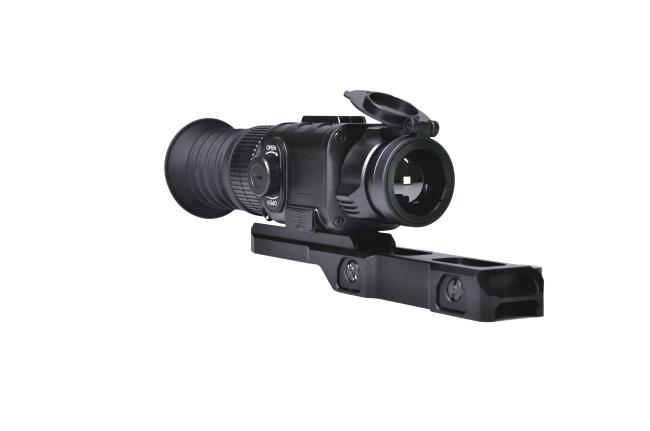

Compact Design Thermal Imaging Sight With 1350m Detection Distance
Compact Design Thermal Imaging Sight With 1350m Detection Distance
Find the features :
◆ Automatic Stadiametric Rangefinder: Thermal sight version is equipped with an automatic stadiametric range finder which allows the user to estimate the approximate distance to an object of known size.
◆ Picture in Picture helps users not to lose important targets while the bigger scene shows on the whole screen.
◆ Optical magnification 1.9x
◆ Display type: LED 1024X768
◆ Limited 2-year warranty
| Technical Data Sheet of Thermal Imager NightSeer335 Series | |
| NS335-R | |
| Microbolometer | |
| Type | Uncooled |
| Resolution, pixels | 384×288 |
| Frame Rate, Hz | 50 |
| Pixel size, um | 17 |
| NETD | less than 50mk |
| Optical Characteristics | |
| Objective Lens | 35mm, F/1.1 |
| Magnification, X | 1.9 |
| Zoom | 2x/PIP/4X |
| Eye Relief, mm | 60mm |
| Dioptre Adjustment, D | ±5 |
| FOV | 10.6°×8.0° |
| Close-up range,m | 5 |
| Display | |
| Type | OLED |
| Resolution, pixel | 1024×768 |
| Detection Range (1.7m target) | 1350 |
| Recognition Range (1.7m) | 450 |
| detection range (2.3m target) | 1800 |
| Recognition Range (2.3m) | 600 |
| Reticle | |
| Accuracy(per pixel) | 0.62MOA |
| Click range(x,y) | 238 MOA |
| Power Supply | |
| Battery Type | 2XCR123 |
| Power Supply | 3.6～7.2 |
| External Power Supply | 5v USB |
| Operation Time on a battery set(standard version),h | 5 |
| Operation Time on external battery pack(standard version),h(13000mAh) | 44 |
| Video recorder (optional) | |
| Video/Photo format | avi/jpg |
| Built-in memory(optional) | 32G |
| Wifi Channel(optional) | |
| Frequency | 2.4 |
| Reception range,m | 15 |
| Physical Parameters | |
| Degree of Protection | IP67 |
| Operation Temperature | —25°C～+50°C |
| Storage Temperature | —40°C～+70°C |
| Shock and Vibration | 1000g/ms |
| MTBF | More than 800h |
| Weight without batteries,g | 380 |
| Dimension, mm | 176×65×67 |
RESEARCH & DEVELOPMENT
Hubei Cono Technology Co., Ltd is driven to improve our technologies with our own self-developed methods of R&D. We gather input from our clients which helps us to gauge what is most important to the end-user. Our Engineers and Assemblers work together to create better, more useful devices while developing new methods for the construction and testing of future devices.
SALES & SERVICE
We understand that as a manufacturer it is important to work tightly with our distributors to support customers from different regions. We try our best to make sure all customers can get proper training of our device and good after-sell service when any kind of failure occurs.
QUALITY CONTROL
We understand that, in some cases, lives may depend on the performance of our products, that is why every unit that leaves our facility must pass tough quality control standards testing.
It is our mission to continue to design, build, test and ship the very best optoelectronic devices on the market.
