Shockproof Nightseer Mini Thermal Imager High MOA Accuracy Expansive Menu Options
Shockproof Nightseer Mini Thermal Imager High MOA Accuracy Expansive Menu Options

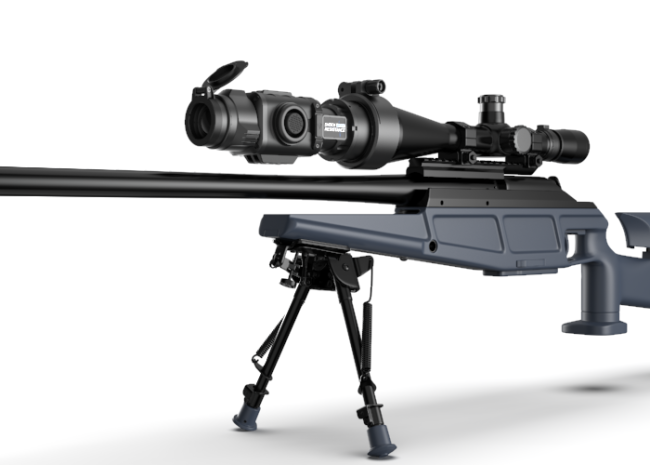

NightSeer Clip-On Systems eliminate the typical inconvenient requirements of removing an existing day scope from a weapon, or the need to replace the day scope with a dedicated thermal sight.
All units are waterproof, recoil-tested and bore-sighted to tolerances of less than 1 MOA, so no re-zeroing is required by the operator.
It also allows users to maintain consistent eye relief and shooting position. No re-training is necessary, because the user isn’t required to learn how to operate a totally new device.
Features of Multifunctional Thermal Imager:
- 4x E-Zoom Digital Zoom
- High MOA accuracy.
- Digital OLED Display.
- Start-up Time is less than 5 Seconds.
- Full 384x288 thermal imager.
- 17-micron pixel pitch.
- 50 Hz frame rates.
- 6061 Aircraft-grade aluminum package.
- Waterproof to 1 meter.
- Nitrogen filled.
- Intuitive menu system.
- Easy-to-use eyepiece diopter adjustment.
- Expansive menu options.
- It can be used as a handheld monocular.
- Stadiametric rangefinder.
| Technical Data Sheet of Thermal Imager NightSeer335/350 Series | ||
| NS335-C | NS350-C | |
| Microbolometer | ||
| Type | Uncooled | Uncooled |
| Resolution, pixels | 384×288 | 384×288 |
| Frame Rate, Hz | 50 | 50 |
| Pixel size, um | 17 | 17 |
| Optical Characteristics | ||
| Objective Lens | 35mm, F/1.1 | 50mm, F/1.1 |
| Magnification, X | 1 | 1 |
| Zoom | 2x/PIP/4x | 2x/PIP/4x |
| Eye Relief, mm | 24mm | 24mm |
| Dioptre Adjustment, D | / | / |
| FOV | 10.6°×8.0° | 7.4°×5.6° |
| Close-up range,m | 5 | 5 |
| Display | ||
| Type | OLED | OLED |
| Resolution, pixel | 1024×768 | 1024×768 |
| Detection Range (1.7m target) | 1350 | 1800 |
| Recognition Range (1.7m) | 450 | 600 |
| Detection Range (2.3m target) | 1800 | 2400 |
| Recognition Range (2.3m) | 600 | 800 |
| Reticle | ||
| Accuracy(per pixel) | / | / |
| Click range | / | / |
| Power Supply | ||
| Battery Type | 2XCR123 | 2XCR123 |
| Power Supply | 3.6～7.2 | 3.6～7.2 |
| External Power Supply | 5v USB | 5v USB |
| Operation Time on a battery set(standard version),h | 5 | 5 |
| Video recorder | ||
| Video/Photo format | avi/jpg | avi/jpg |
| Built-in memory(optional) | 32G | 32G |
| Wifi Channel(optional) | ||
| Frequency | 2.4 | 2.4 |
| Reception range,m | 15 | 15 |
| Physical Parameters | ||
| Degree of Protection | IP67 | IP67 |
| Operation Temperature | —25℃～+50℃ | —25℃～+50℃ |
| Storage Temperature | —40℃～+70℃ | —40℃～+70℃ |
| MTBF | More than 800h | More than 800h |
| Weight without batteries,g | 400 | 425 |
| Dimension, mm | 150×61×67 | 167×65×67 |
