HD OLED Display Handheld Thermal Imaging Scope 1200G / ms Shock Tolerance
HD OLED Display Handheld Thermal Imaging Scope 1200G / ms Shock Tolerance
The NightSeer thermal clip on converts your existing day scope to thermal and provides excellent target acquisition and aiming capabilities for the demanding sports shooter, varmint hunter, military, law enforcement, or security personnel.
They can be utilized over medium (35mm), or long (50mm) distance in conjunction with broad-range, direct-view (day time) scopes and sights. All NightSeer Clip-On systems excel in performance, versatility, reliability, features, and value.
Features
▼HD OLED Display

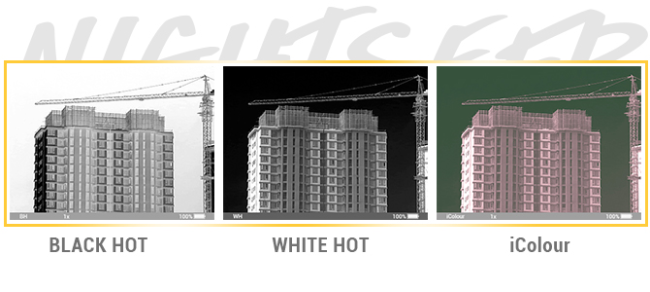

▼ Intelligent Coloration:
▼ Rugged 1200G recoil resistance
▼ Limited 2-year warranty
Technical Data
| Technical Data Sheet of NS3 Series | ||
| NS335-C | NS350-C | |
| Detector | ||
| Resolution | 384×288 | |
| Frame Rate | 50Hz | |
| Pitch | 17um | |
| Spectral range | 8-14um | |
| NETD | Less than 50mk | |
| Optical Characteristics | ||
| Objective Lens | 35mm | 50mm |
| Magnification | 1X | 1X |
| FOV | 10.6°×8.0° | 7.4°×5.6° |
| Close-up range | 5m | 5m |
| Funtions | ||
| Palette | 10 optional | |
| Start up time | Less than 5 seconds | |
| Image Enhancement | DDE | |
| Contrast and Brightness | AGC | |
| Display | ||
| Type | OLED | |
| Resolution | 1024×768 | |
| Power Supply | ||
| Battery Type | 2XCR123 | |
| External Power Supply | 5v micro USB | |
| Battery Life | 5h | |
| Physical Characteristics | ||
| Weight without batteries | 435g | 465g |
| Size | 150mm×61mm×67mm | 162mmx61mmx67mm |
| Environment Compatibility | ||
| Water Proof | IP66 | |
| Operation Temperature | —25°C~+50°C | —25°C~+50°C |
| Storage Temperature | —40°C~+70°C | —40°C~+70°C |
| Shock Tolerance | 1200g/2ms | |
Packing
What's in the box
Nightseer 335C
Portable Bag
Clip on Eyepiece
Video / RS232 Cable
Warranty Card
Manual
Cleaning Clot
Wireless Keyboard (Optional)
Monocular Eyepiece (Optional)
We understand that lives may depend on the performance of our products, that is why every unit that leaves our facility must pass tough quality control standards testing.
It is our mission to continue to design, build, test and ship the very best optoelectronics devices on the market.
