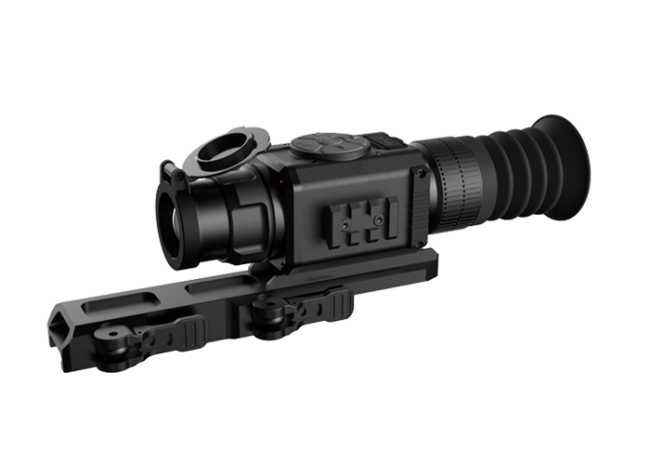

Thermal Imaging Sight Orion335R
The Orion335R provides very high image quality and makes your shooting easy and safe. The thermal camera also has built-in video, photo function, and WI-FI so everything you need to document and share your nice moment. It has all the features you would expect from a really good thermal scope, patented image processing technology, powerful 384 x288 thermal sensors, 1024x768 OLED LCD display, and a 60mm eye distance.
OUR FEATURES:
Selectable Reticle
A full complement of digitally displayed reticle solutions ensures quick target acquisition and a richly contrasting sight picture. Choose from an array of reticle patterns, colors, and brightness settings.
Built-in Video Recording
This feature gives you the opportunity to capture your experiences and enjoy high-resolution images. Image and video content is stored internally and can easily be transferred to PC/laptop via wired connection or Wi-Fi. Never miss a chance to catch your moment on video.
Wi-Fi Connectivity
One of the obvious features that stands out in this thermal imager is its wireless capability. It connects wirelessly to smartphones and tablets which use the free Mobile App. Wireless connectivity is possible directly via an ad-hoc connection (peer-to-peer) or over a network.
| Technical Data Sheet of Orion rifle 335R | |
| Detector | |
| Type | Uncooled |
| Resolution | 384×288 |
| Frame Rate | 50Hz |
| Pitch | 17μm |
| Spectral range | 8-14μm |
| NETD | less then 50mk |
| Optical Characteristics | |
| Objective lens | 35mm |
| Magnification | 1.4x |
| FOV | 10.6°×8.0° |
| Close-up range | 5m |
| Eye Relief | 60mm |
| Dioptre Adjustment | -5D-4D |
| Functions | |
| Zoom | 2x/4x/PIP |
| Palette | 10 optional(can be customized) |
| Start uptime | less than 5 seconds |
| Startup image | Can be customized |
| Menu and information | GUI(Can be customized) |
| Image Enhancement | DDE |
| Contrast and Brightness | AGC |
| Online update | Both code and GUI resources |
| reticle type | 5 optional(Can be customized) |
| ballistic and zeroing | 5 types can be created by user |
| Range finder | Software Approximate ranging |
| Display | |
| Type | OLED |
| Resolution | 1024×768 |
| Power Supply | |
| Battery | 2×CR123 |
| External Power Supply | 5V micro USB |
| Battery life | 5h |
| Physical Characteristics | |
| weight without battery | 450g |
| size,(mm) | 170×61×67 |
| Environmental Compatibility | |
| Waterproof | IP67 |
| Operating Temperature | -25℃-50℃ |
| Storage Temperature | -40℃-70℃ |
| shock tolerance | 1200g/ms |
| Wi-fi | |
| Frequency | 2.4GHz |
| Standard | 802,11 b/g/n |
| Line-of-sight reception range, m | 15 |
