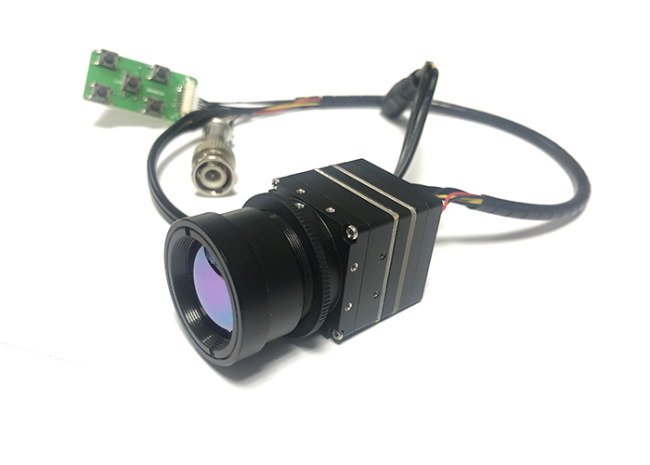

Small Low Powered Excellent Images Thermal Core For OEM Applications

State of the art AXE series technology provides you with outstanding electro-optics in a very high-speed, low-noise yet compact camera core for a wide variety of demanding applications.

Main Features

• 17μm pixel pitch, NETD<60mK
• 50Hz imaging frequency, 3s for start-up
• Ultra-low power consumption(less than 1.6W)
• Customizable interfaces
• Shutterless thermal technology
• Compact Size
• Lightweight
• Short time to image
• Advanced WDR image processing
• Continuous digital zoom
• Adjustable crosshair
• Multiple lenses available
• User-defined symbology supported
• Auto-focus supported
• -40~ +75℃ operating temp range supported

  AXE 6 Specification
  	AU Vox	AU	Mini
  Detector
  Resolution	640*512	640*480	640*480
  Pitch	17μm	17μm	17μm
  Spectral range	8-14μm	8-14μm	8-14μm
  NETD	40mk	50mk	50mk
  Image Processing
  Frame Rate	30Hz	30Hz	30Hz
  NUC	calibration with shuttle	shutter	shutterless
  Digital Zoom	×2,×4	×2,×4, PIP	×2,×4
  Palette	10 optional(can be customized)	10 optional(can be customized)	10 optional(can be customized)
  Image Flip	2 optional	4 optional	2 optional
  Startup time	less than 10 seconds	less than 10 seconds	less than 10 seconds
  Startup image	Can be customized	Can be customized	Can be customized
  Menu and information	GUI(Can be customized)	GUI(Can be customized)	GUI(Can be customized)
  Image Enhancement	DDE	DDE	DDE
  Contrast and Brightness	AGC	AGC	AGC
  Image stabilization time	less than 6 second	less than 6 second	less than 6 second
  Image Presentation
  Video output	Pal/NTSC optional	Pal/NTSC optional
  Digital Video	CVBS/SDI	Standard 0.39" MicroOled/LVDS	8-bit BT656
  Module control
  Control	RS232	RS232/usb/5 keys optional	RS232
  Power supply
  Required Voltage	4.5-15VDC	3.6-12VDC	4.5-15VDC
  Power consumption	1.3W	1.3W	1W
  Environmental Compatibility
  Operating Temperature	-40℃-60℃	-40℃-60℃	-40℃-60℃
  Storage Temperature	-45℃-70℃	-45℃-70℃	-45℃-70℃
  Physical Characteristics
  Size	41mm x 41mm x 50mm	38mm×38mm×34mm	28mm x28mm x 37mm
  Weight	133g	60g(without lens)	35g
  lens options	4mm/9mm/13mm/19mm/25mm/45mm	35mm/50mm	4mm/9mm/13mm/ 19mm/25mm/45mm
