Sharp Image Military Standard Clip On Thermal Scope Thermal Imaging Devices

Price Negotiable
Price: Negotiable
MOQ: 1 PCS
Delivery Time: 7-30 Days
Brand: CONO
Product Description

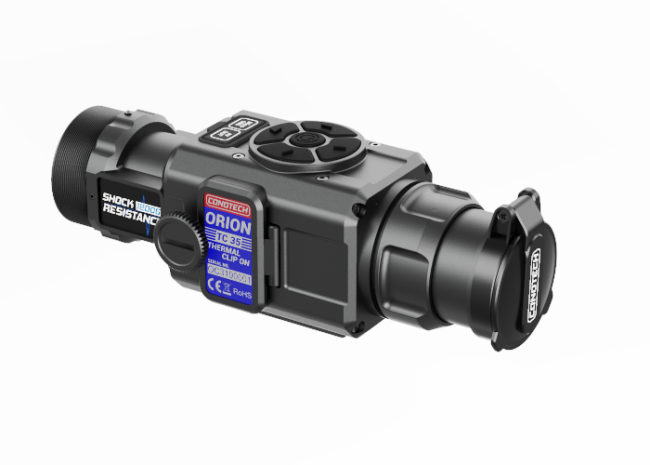

Sharp Image Military Standard Clip On Thermal Scope Thermal Imaging Devices

With the new multifunctional thermal imaging device, you can continue to watch in more detail.



Features:



Built-in Video Recording

This feature gives you the opportunity to capture your experiences and enjoy high-resolution images. Image and video content are stored internally and can easily be transferred to PC/laptop via wired connection or Wi-Fi. Never miss a chance to catch your moment on video.



Wi-Fi Connectivity

One of the obvious features that stands out in this thermal imager is its wireless capability. It connects wirelessly to smartphones and tablets which use the free Mobile App. Wireless connectivity is possible directly via the ad-hoc connection (peer-to-peer) or over a network.



Fully Waterproof

With IP67 water protection class Core, thermal imaging devices can be operated in the conditions of precipitation of any intensity and withstand a short underwater submersion.





Technical Data Sheet of Orion clip on
  Orion335C Orion350C
Detector
Type Uncooled
Resolution 384×288
Frame Rate 50Hz
Pitch 17μm
Spectral range 8-14μm
NETD less then 50mk
Optical Characteristics
Objective lens 35mm 50mm
Magnification 1.4x 2.0x
FOV 10.6°×8.0° 7.4°×5.6°
Close-up range 5m
Eye Relief 60mm
Dioptre Adjustment -5D-4D
Functions
Zoom 2x/4x/PIP
Palette 10 optional(can be customized)
Start uptime less than 5 seconds
Startup image Can be customized
Menu and information GUI(Can be customized)
Image Enhancement DDE
Contrast and Brightness AGC
Online update Both code and GUI resources
reticle type 5 optional(Can be customized)
ballistic and zeroing 5 types can be created by user
Range finder Software Approximate ranging
Display
Type OLED
Resolution 1024×768
Power Supply
Battery 2×CR123
External Power Supply 5V micro USB
Operation Time 5h with WIFI OFF
2h with WIFI ON
