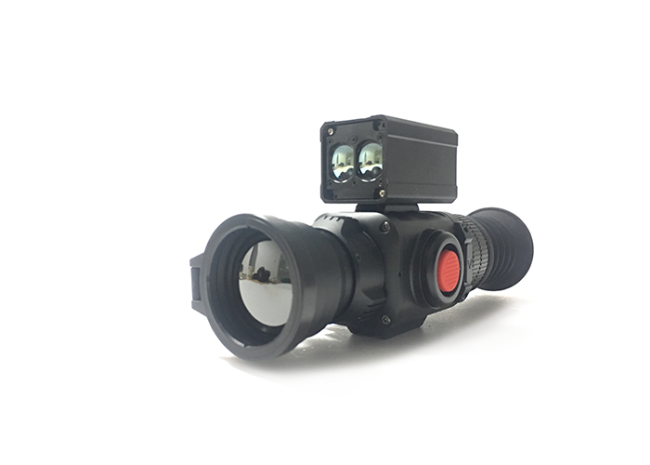

384x288 Compact Infrared Thermal Imaging Sight With Long Range Laser Finder
384x288 Compact Infrared Thermal Imaging Sight With Long Range Laser Finder
TRSL 3 series can be ordered with a state of the art 17µ pixel pitch 384 x 288 thermal sensor with an optional lens of 35mm and 50mm. A 1024*768 resolution display screen provides high contrast and sharp images.
Features :
◆A built-in laser rangefinder automatically captures and displays target distances up to 600 meters.
◆ Based on the proven 17Um microbolometer core, the NightSeer thermal hunting sight is an ideal product for force protection, border patrol officers, police SWAT officers, and special operations forces
◆ Offers superiors clarity, versatility, reliability, functionality and value
◆ Intelligent Coloration, The NIGHTSEER has Intelligent coloration technology. Intelligent coloration allows the user to better bring out the target or the background depending on conditions.
◆ Limited 2-year warranty
| Item | NS350RL |
| Detector | |
| Resolution | 384×288 |
| Frame Rate | 50Hz |
| Pitch | 17μm |
| Spectral range | 8-14μm |
| NETD | less then 50mk |
| Optical Characteristics | |
| Objective lens | 50mm |
| Magnification | 2.7X |
| FOV | 7.4°×5.6° |
| Close-up range | 5m |
| Eye Relief | 60mm |
| Dioptre Adjustment | -5D-4D |
| Functions | |
| Zoom | 2x/4x/PIP |
| Palette | 10 optional(can be customized) |
| Startup time | less than 5 seconds |
| Startup image | Can be customized |
| Menu and information | GUI(Can be customized) |
| Image Enhancement | DDE |
| Contrast and Brightness | AGC |
| Online update | Both code and GUI resources |
| reticle type | 5 optional(Can be customized) |
| ballistic and zeroing | 5 types can be created by user |
| Range finder | YES |
| Display | |
| Type | OLED |
| Resolution | 1024×768 |
| Power Supply | |
| Battery | 2×CR123 |
| External Power Supply | 5V micro USB |
| Battery life | 5h |
| Physical Characteristics | |
| weight without battery | 515 |
| size,(mm) | 193*100*67 |
| Environmental Compatibility | |
| Waterproof | IP66 |
| Operating Temperature | -25℃-50℃ |
| Storage Temperature | -40℃-70℃ |
| shock tolerance | 1200g/ms |
