Energy Saving Industrial Dust Collection Systems 17800m³/H Air Volume
Cyclone Dust Collector / Industrial Dust Collector / Dust Collector Price
Features
1 Complete with computer design, design accurate and reliable.
2 The shell adopts frame structure with high strength, good stability,also can designed by different pressure and temperature requirements.
3 The ways of gas in or out can be arranged according to characteristics of the design process into various forms, process layout flexibility.
4 Using the resistance type air flow plus uniform diversion device, the air uniform, and no blocking phenomenon.
5 Precipitation using 480C plate board, discharge tube prick using the new RS line, most with the management, discharge uniformity, discharge performance.
6 The discharge electrode connected with the framework of the rational, no dropped calls, disconnected situation.
Our bag type filter is a kind of small and medium-sized pulse jet dust collector. The most high efficient dust removal for your dust prevention circumstance. To adopt pulse blowing dedust and PLC controller, the automatic working can be come true. The advantage is reliable operation, easy maintenance and management. Through our design program and every kind of detectors signal, we can see every parts of the equipment during it working. Our dust collector equipment often can be widely used in cement, metallurgy, electric power, chemical and other industries of dust gas purification and fine powder material recycling collection.
Application
1 Welding fume, foundry
2 Food, pharmaceutical
3 Shot blasting
4 Tobacco, metal, painting
5 Energy
Technical parameters
Bag filter is also named as pulsed-ejection bag filter that is one of bag filters. Bag filter is de-dusting equipment that adopts bag de-dusting technology(principle).Normally,bag de-dusting technology means filtering&de-dusting technology is realized with filter-bag. Material of filter-bag is natural fiber, chemical&synthetic fiber,glass fiber,metal wool or other fiber. Filtration fabric is made of above materials,which is stitched to filter-bag in various types,e.g.round-type and flat type etc. When filter-bag is used to filter and separate dust particle, the dust-contained gas can either go through filter-bag from exterior to interior,then dust can be separated on external surface of filter-bag,or the dust-contained gas can go through filter-bag from interior to exterior,then dust can be separated on inner surface of filter-bag.De-dusting process is fulfilled upon dust-contained gas is separate.

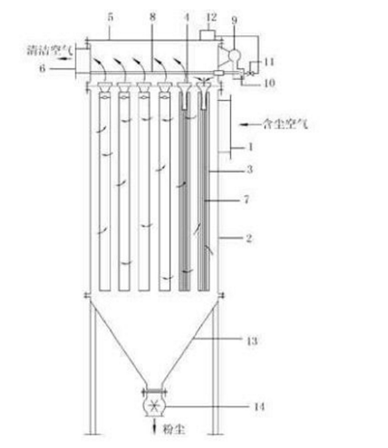

l- air inlet, 2- middle housing, 3- filter-bag, 4- V enturi, 5-upper housing, 6- exhaust gas port, 7- frame, 8- ejection
pipe, 9- air tank, 10- pulse valve, 1 1- control valve, 12-controller, 13-dust hopper, 14-dust-discharging valve.
Purified gas chamber, pulse valve, ejection pipe, purified gas outlet, filter-bag, dust-contained gas inlet, housing dust-discharging valve.
|
Model |
JFMC-64 |
||||
|
64-4 |
64-5 |
64-6 |
64-7 |
64-8 |
|
|
Air volume (m³/h) |
17800 |
22300 |
26700 |
31200 |
35700 |
|
Filter area (㎡) |
248 |
310 |
372 |
434 |
496 |
|
Number of dust collector (piece) |
4 |
5 |
6 |
7 |
8 |
|
Number of bags per room (piece) |
64 |
||||
|
Total number of filter bags(piece) |
256 |
320 |
384 |
448 |
512 |
|
Compressed air consumption (Nm³*min) |
0.6(1.2) |
||||
|
Total weight (t) |
8.3 |
9.8 |
11.7 |
13.4 |
15 |
FAQ
Q1: Our Advantage
A: * OEM & ODM Support
* Support Technical Service , Installation , Training , After-Sale Service.
* Factory Sale Price.
* We have exported to more than 70 countries.
Q2: What's your Delivery Time ?
A: 5-7 days for single machines , 15-20 days for production line.
Q3: Why choose your factory?
A: * Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivered out.
* We are professional manufacture providing factory price for you.
* we have a professional installation and after-sales staffs.
Q4: How to visit your factory ?
A: * Taking the plane to Zhengzhou International Airport .
* Taking the high-speed rail to Zhengzhou Station .
We also provide free hotel booking and airport pick up service .
Packing & Shipping
1 All the wear out spare parts are packed by plastic films and wooden boxes.
2 Wire cables are used for fastening the machines.
3 FCL: Shipping by standard exporting container.
4 LCL: Poly wood case.
5 20GP,40GP,40HQ,40OT ,BARE PACKING
Looking forward to cooperate with you !
