Industrial Aluminium Pressure Die Casting Cold Chambers Forging Round Blank
Pressure Aluminium Die Casting Cold Chambers for Die Casting Industry
Product Description
The Durable Die Casting Cold Chambers /Plunger Tips/Plunger Rods Nozzles Adapters are the Critical Elements of the Aluminum Die Cast Process.
Features:
- Tolerance of Die Casting Cold Chamber Inside Diameter: H7
- Cold Chamber Length:885mm
- Tolerance of Cold Chamber Outer Diameter:-0.1 -0.2
- Precisionly Inside Diameter of Die Casting Cold Chamber for Die Casting Industry is to allow the appreciate velocities and pressure rise times.
- Precisionly Fabricated Cold Chamber can optimize die casting process parameters in Die Casting Industry
- Cheaped priced Die Casting Cold Chamber
- Maximize the life of die casting Cold Chamber
Avaibable in: 3500T Shot Sleeve, 2800T Shot Sleeve, 1000T Shot Sleeve,
500T Shot Sleeve, 350T Shot Sleeve, 250T Sleeve, Integrated Shot Sleeve with or without Cooling Systems.
| Material | H13,1.2344,SKD61, Dievar, 4Cr5MoSiVi |
| Surface Finish | Rough Peeled |
| Material Conditions | Annealed, Annealing |
| Hardness | 47~49HRC,477~475HB |
| Lifetime | Over than 1year as per your requirement |
| Surface Treatment | Gas Nitridation 0.2mm, Heat Treatment |
| Material Shaped | Forging Forged |
| Other Shot System Components available | 1. The cold chamber or shot sleeve 2. The plunger tip or shot tip 3. The shot cylinder 4. The plunger rod |
Material Datasheet

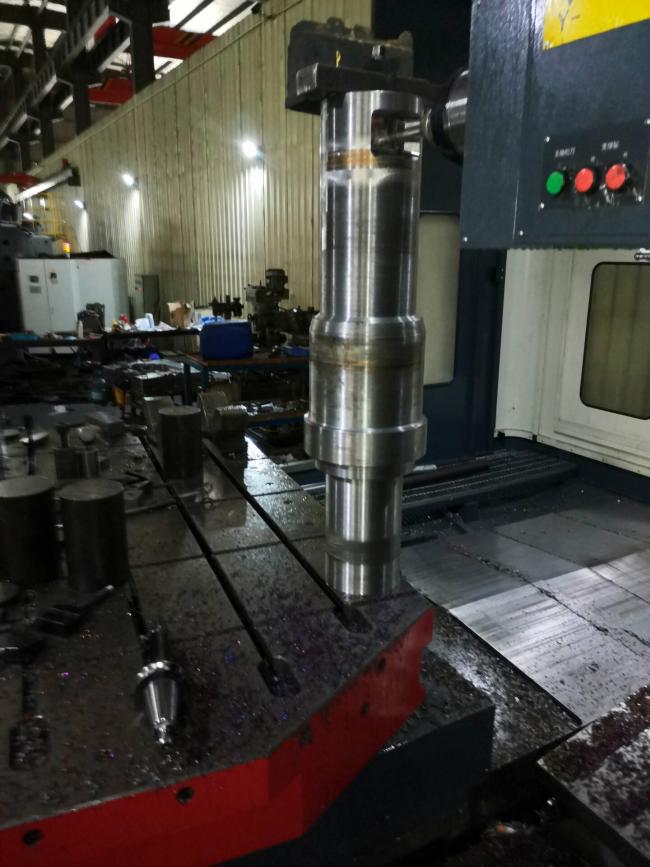

Pressure Aluminium Die Casting Cold Chambers for Die Casting Industry
1.2344 is a hot work chromium-molybdenum-vanadium tool steel. It has excellent working properties and offers
high temperature strength and wear resistance.
- Common 1.2344 Tool Steel Related Specifications
| Country | USA | German | Japan |
| Standard | ASTM A681 | DIN EN ISO 4957 | JIS G4404 |
| Grades | H13 | 1.2344/X40CrMoV5-1 | SKD61 |
- 1.2344 Tool Steel Chemical Composition
| ASTM A681 | C | Mn | P | S | Si | Cr | V | Mo | ||||||
| H13 | 0.32 | 0.45 | 0.2 | 0.6 | 0.03 | 0.03 | 0.8 | 1.25 | 4.75 | 5.5 | 0.8 | 1.2 | 1.1 | 1.75 |
| DIN ISO 4957 | C | Mn | P | S | Si | Cr | V | Mo | ||||||
| 1.2344 /X40CrMoV5-1 | 0.35 | 0.42 | 0.25 | 0.5 | 0.03 | 0.02 | 0.8 | 1.2 | 4.8 | 5.5 | 0.85 | 1.15 | 1.1 | 1.5 |
| JIS G4404 | C | Mn | P | S | Si | Cr | V | Mo | ||||||
| SKD61 | 0.35 | 0.42 | 0.25 | 0.5 | 0.03 | 0.02 | 0.8 | 1.2 | 4.8 | 5.5 | 0.8 | 1.15 | 1 | 1.5 |
Why Choose Us?
- Quality Certificate of Material Guaranteed;
- Quality Sourced Finish Treatment Ensured ;
- Competitively Priced Parts;
- Delivered on time;
- Located in Die Casting Industry Base In China;
- Focus on Tooling & Mold Spare Parts;
- More Than 7 Years` Experiences on Hardware;
- These Die-Casting Machine Parts Are Used In Toshiba, Buhler, Ube, Lk, Yizhi Mi, Etc;
- Mold Parts Equipped With The Production Of Automotive OEM Mold;
- One Stop Solution;
- Manufacturing Capacity of Shot Sleeves over 85pcs each Month;
- Enjoy High Reputation Among Customers.

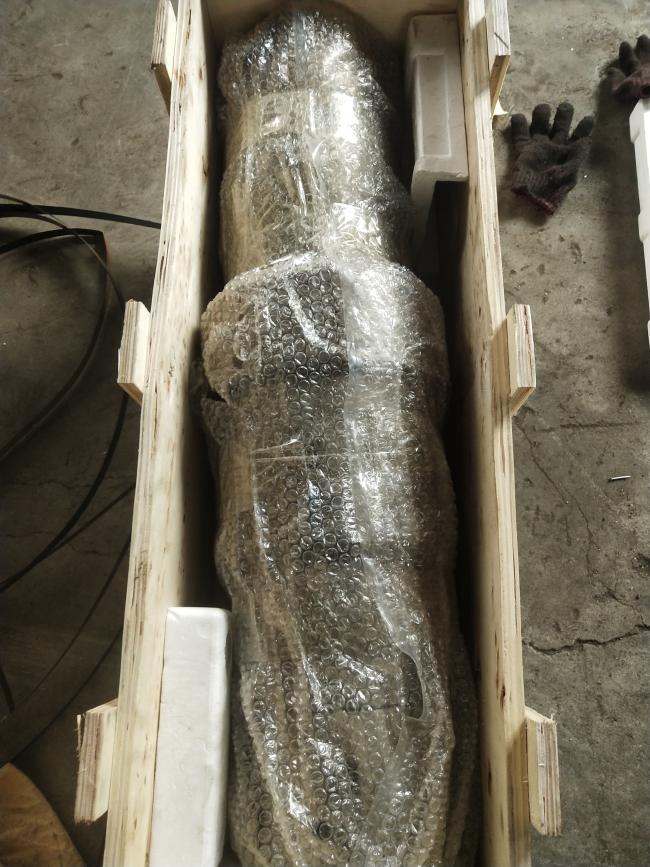

Package
Pressure Aluminium Die Casting Cold Chambers for Die Casting Industry
