5 - 20ml Oral Liquid Filling Machine Pharma Industry Use With 4 Filling Nozzles
5 - 20ml Oral Liquid Filling Machine Pharma Industry Use With 4 Filling Nozzles
General Features of Oral Liquid Filling Machine
SED-4/1GX Automatic Filling and Capping machine for the application of light liquid filling and capping for plastic or glass bottles. The machine is composed by a conveyor, SS316L volumetric piston pump, top-bottom filling nozzles, liquid buffer tank, bottle index wheel, capping system.
The bottle loading/unloading through loading/unloading turntable (alternative Ø620mm or Ø900mm), or directly from an production line.
Product Parameters of Oral Liquid Filling Machine
| Kind of bottle | Various kinds of plastic/glass bottle |
| Bottle size* | Min. Ø 20mm Max. Ø80mm |
| Kind of cap | Alternative Screw on cap, alum. ROPP cap |
| Cap size* | Ø 20~ Ø45mm |
| Filing nozzles | 4heads |
| Speed | 30~50bpm |
| Alternative Filling volume* | 15~60ml, 30~125ml, 50~250ml, 200~500ml |
| Filling accuracy | ±1% |
| Power* | 220V 50/60Hz 1.2kw |
| Compress air require | 10L/min, 4~6bar |
| Machine size mm | Length 2500, width 1000, height 1600 |
| Machine weight: | 800kgs |
Characteristics of Oral Liquid Filling Machine
Adopt volumetric injection pump to fill high precision, also fill various viscosity liquid.Easy knock-down pump structure, convenient to clean and sterilize.
The piston ring of volumetric injection pump use different material of silicone, viton or other kinds according to liquid characteristic, use ceramic pump in special industry.
PLC control system, frequency conversion adjusting speed, high degree automatization.
Filling quantity of all pumps is adjusted in a lump, minim adjustable for each pump. Easy and quick operate.
Filling system has the function of shrinking, no drop leak. Bottom diving fill, no foam.
Suitable to various sizes of container, easy adjusting, short time cost.
The whole machine is designed according to requirements of GMP.

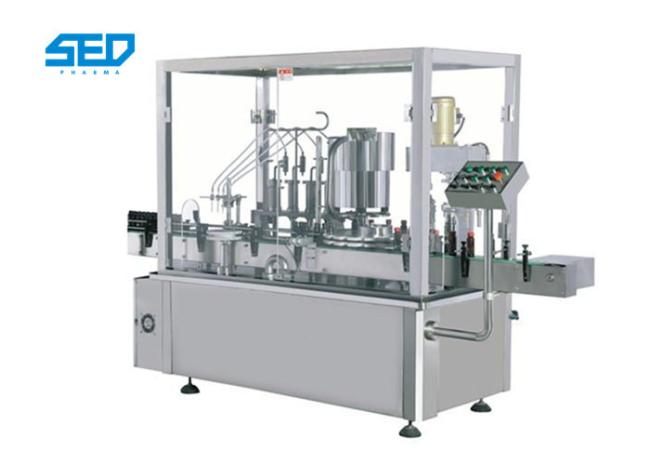

Products Show of Oral Liquid Filling Machine

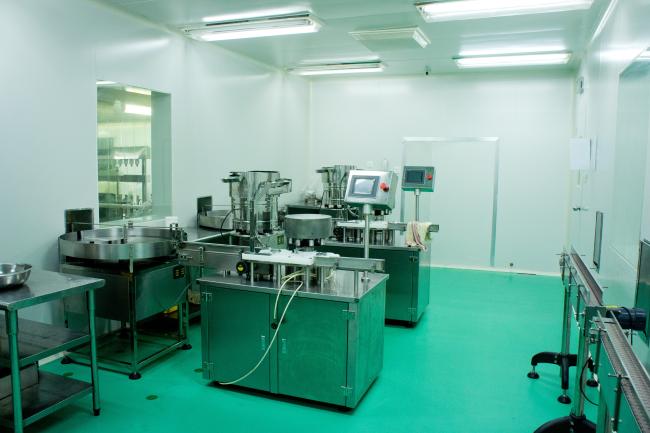

Application of Oral Liquid Filling Machine
