Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine
Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine
Product introduction of Freeze Dry Machine
Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device.
Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated. Belts move on the heating plates evenly. Steam, hot water, hot oil can be used as heating media.
With the moving of the belts, the product goes through from the beginning evaporating, drying, cooling to discharging in the end. The temperature decreases through this process, and can be adjusted for different products.
Special vacuum crusher is equipped at the discharge end to produce different size end product. The dry powder or granule product can be automatically packed or continue with subsequent process.
Main Parameter of Freeze Dry Machine
| Model | Diameter | Length | Height | Heating area | Moisture contentoffeeding material | Moisture content of dried product |
Heating resource |
Water Evaporation |
Dryer body power |
| mm | mm | mm | Square meter | % | % | kg/h | kw | ||
| MJY30-4 | 1700 | 9800 | 2700 | 30 |
20-80 Mobility |
0.2-5 Adjustable |
Steam or Hot water or Hot oil |
15-25 | 10.00 |
| MJY60-6 | 2200 | 10800 | 3650 | 60 | 45-55 | 14.00 | |||
| MJY80-6 | 2200 | 13500 | 3650 | 80 | 60-75 | 14.50 | |||
| MJY100-6 | 2200 | 16100 | 3650 | 100 | 80-90 | 15.50 | |||
| MJY120-7 | 2200 | 16100 | 3650 | 120 | 100-110 | 16.50 | |||
| MJY160-8 | 2800 | 17300 | 4100 | 160 | 120-140 | 18.50 | |||
| MJY200-10 | 2800 | 17300 | 4150 | 200 | 160-180 | 25.50 |
Main Features of Freeze Dry Machine
1. Less labor cost and energy consumption
2. Little loss of product and solvent recycling possible
3. PLC automatic control system & CIP cleaning system
4. Good solubility & excellent quality of the products
5. Continuous feed-in, dry, granulate, discharge in vacuum state
6. Completely closed system and no contamination
7. Adjustable drying temperature (30-150℃)& drying time (30-60min)
8. GMP standards

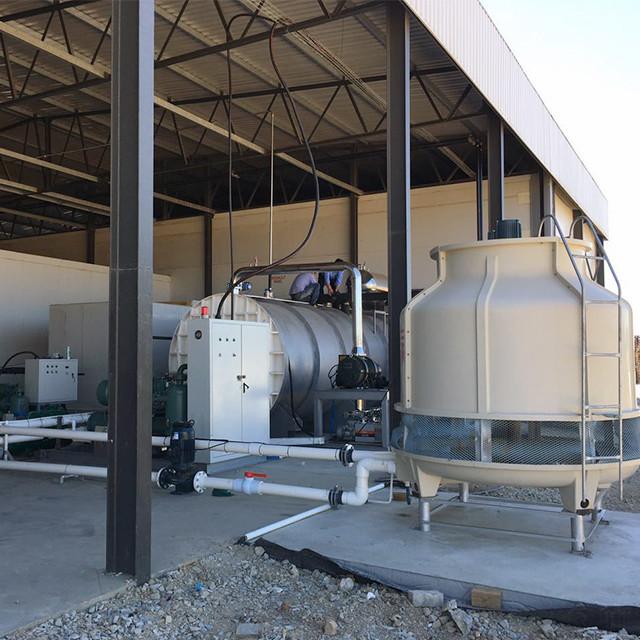

Product Show of Freeze Dry Machine
Application of Freeze Dry Machine
