SED-400MZ 50-60 bags/Minute Facial Mask Packing 380V Automatic Packing Machine 2layers
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
50-60 Days after receiving the deposit
Brand:
SED Pharma
Product Description
SED-400MZ 50-60 bags/Minute Facial Mask Packing 380V Automatic Packing Machine 2layers
Product Description of Automatic Packing Machine
Facial Mask Packing Machine with Hopper(support both regular and irregular shape bags),Automatic under the bag, filling, sealing, coding and output.Contact with the material made of 316 stainless steel, it meet GMP standards.Fully automatic production efficiency, reduce labor costs
Product Parameters of Automatic Packing Machine
|
Bag size
|
L: 80-200mm , W: 90-180mm (L*W)
|
|
Mask material
|
2layers: 20~60g/㎡ spun-lace non-woven +polypropylene nonwoven fabric/pearl film
|
|
1layers: 40-60g/m2 spunlace nonwoven or 100% cotton
|
10-58 ml *pump capacity is optional
|
|
Custom made is available
|
H (75mm~225mm) W (75mm ~200mm)
|
|
Packing Material
|
material roll,such as CPP,PE,BOPP compound film, aluminum foil, paper film
|
|
Mask material
|
10-60pouches/min(The speed depends on the product status and filling weight)
|
|
Roll Diameter
|
Inner roller Φ 75mm
|
|
1.Spunlace nonwoven max Φ1200mm( suggestion Φ800mm~1000mm)
|
0-300℃(adjustable)
|
|
2.Pearl film max Φ1200mm(suggestion Φ400mm)
|
380V 50HZ 3.5KW, Three Phase
|
|
3.Polypropylene nonwoven fabric max Φ1200mm(suggestion Φ800mm~1000mm)
|
0.25 m3/min
|
|
4. Max Roll Width 285mm
|
0.6Mpa
|
|
Mask unfolded Size
|
L (230mm~260mm) W (230mm~260mm)
|
|
Production Speed
|
50-60 bags/Minute
|
|
Liquid capacity
|
0~60ml(Accuracy: ±10%)
|
|
Air Consumption
|
700L/min
|
|
Power Supply
|
380V 50/60Hz Three phase 9.0Kw
|
|
Machine Weight
|
5000Kg
|
|
Machine size
|
L5800mm×W3100mm×H2200mm(based on two layers)
|
Feature of Automatic Packing Machine
1.Automatic under the bag, filling, sealing, coding and output.
2.Contact with the material made of 316 stainless steel, it meet GMP standards.
3.Automatic detection function. No bag, no filling. No bag, no seal.
4.Digital temperature controller.
5.PLC touch screen control operation. You can easily set parameters on the touch screen.
6.Output and error information is clear and intuitive.
7.Configuration using world famous.

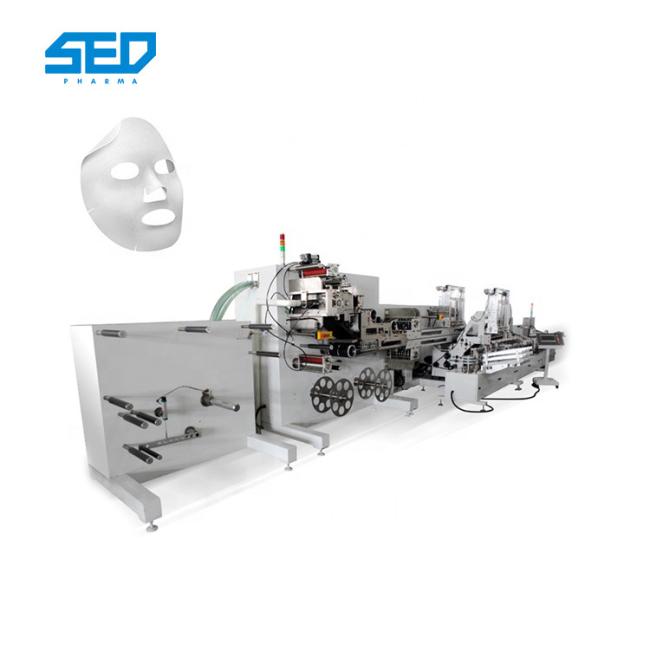

Products Show of Automatic Packing Machine
