High-speed Two-color Capsule Printing Machine with 100,000 capsules/hour Capacity for Pharmaceutical Industry
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
50-60 Days after receiving the deposit
Brand:
SED Pharma
Product Description
High-speed Two-color Capsule Printer Pharmaceutical Capsule Printing Machine
Product Overview

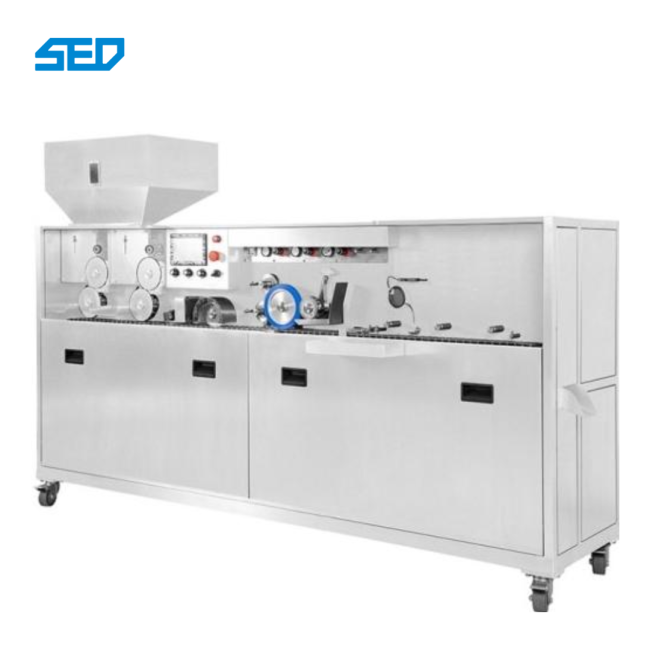

The SED-100000YZJ-X Directional Dual Color Capsule Printing Machine is a high-precision automated printing system designed for the pharmaceutical and nutraceutical industries. It delivers efficient and reliable dual-color printing on empty or filled capsules ranging in size from #00 to #5. The machine ensures precise alignment and individual printing of both the capsule cap and body, significantly enhancing product appearance and brand value.
Key Features
- High Speed Production: Output capacity over 100,000 capsules per hour
- Directional Printing: Capsules are automatically aligned for precise printing
- Double-Color Printing: Print two colors simultaneously with no color misalignment
- Circular & Longitudinal Printing: Supports both printing modes in one machine
- Online Rejection Device: Automatically rejects non-oriented capsules to ensure printing accuracy

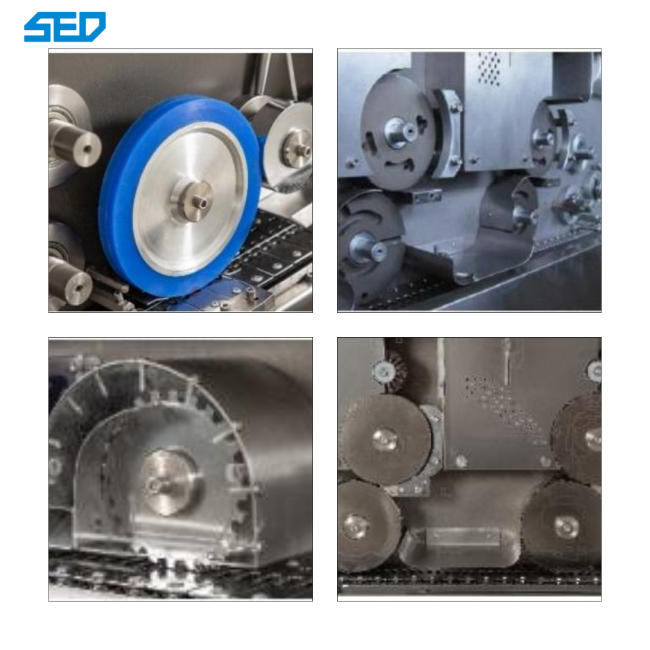

- Automatic Cleaning Wheel: Ensures uniform ink thickness and clear printing quality
- Adjustable Steel Printing Wheel: Printing wheel angle can be freely adjusted for accurate double-color registration
- High-Quality Rubber Wheel: Made of non-toxic silica gel with shore hardness < 23°, ensuring clear printing even at locking points
Technical Specifications
| Item | Specification |
| Model | SED-100000YZJ-X |
| Application | 00#~5# Empty Capsules / Filled Capsules |
| Production Capacity | ≥ 100,000 pcs/hour |
| Power Supply | 220V 50Hz / 110V 60Hz |
| Motor Power | 0.25 kW |
| Compressed Air | 1.8 m³/h @ 0.27 MPa |
| Dimensions | 2300 × 530 × 1500 mm |
| Machine Weight | 200 kg |
Applications
This machine is capable of directional double-color printing on capsule caps for sizes 00# to 5#, ensuring accurate registration and high-quality printing. It can print text, logos, and patterns, enhancing the capsule’s appearance and upgrading the brand image. The machine is ideal for improving product promotion, strengthening corporate identity, and providing anti-counterfeiting features through customized printing.
