Acrylic Coated Fire Resistant Fiberglass Fabric Roll For High Temperature Protect
Acrylic Coated Fiberglass Fabric Roll For Extremely High Temperature Protect Fire Resistant Welding Blanket

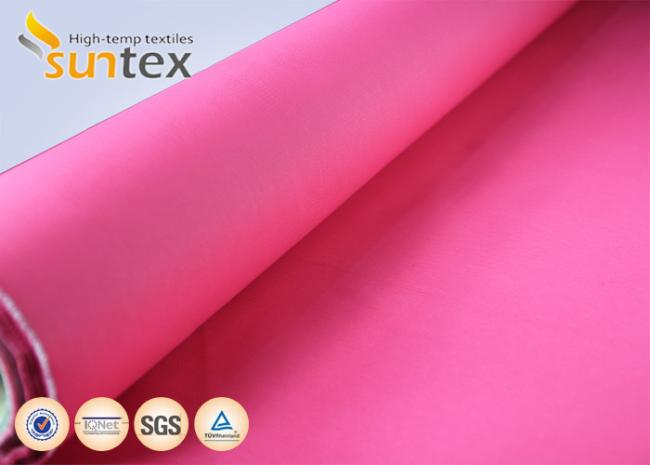

GF400-WS224-3026 is a woven fiberglass fabric with acrylic treatment.It supports temperature up to 5500C,self-extinguishes in 2 seconds when getting away from fire.
Acrylic treatment reduces airborne fibers, enhances abrasion resistance and shelf life while eliminating the potential for toxic smoke out gassing. After treated, the machanical performance improves much as well,become easy to sew, cut, and pouch holes.
It is human being & animal friendly, asbestos-free completely
This type Fiberglass Fabric is red color, but Suntex provide colors OEM as well.
Technical Data:
| BASE FABRIC | Base fabric style No. GF400 | |||
| (Metric) | (English) | Test methods | ||
| Weave | Plain | Plain | ||
| Yarn | ||||
| Warp | EC9 33 1*4 | ECG 150 1/4 | ||
| Weft | EC9 33 1*4 | ECG 150 1/4 | ||
| Construction | ||||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 | |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 | |
| Weight | 410 ± 20 g/m2 | 12.6 ± 0.58 oz/yd2 | ASTM D3776-96 | |
| Thickness | 0.37 ± 0.02 mm | 0.0145 ± 0.0008 inch | ASTM D1777-96 | |
|
|
||||
| FINISHED FABRIC | Finishing style No. WS224-3026 | |||
| Coating | Acrylic weave-set finish two sides, high add-on. | |||
| Weight | 550 ± 20 g/m2 | 16 ± 0.59 oz/yd2 | ASTM D3776-96 | |
| Thickness | 0.42 ± 0.02 mm | 0.017 ± 0.0007 inch | ASTM D1777-96 | |
| Color | Red | |||
| Temp resistance | 5500C | 10000F | ||
Advantages:
1. OEM colors. End users can choose what they like.
2. Easy to be holed, sewn and fabricated.
3. Excellent abrasion resistance property.
4. Excellent tensile strength.
Main applications:
1. Hullboard.
2. Fireproof protective blanket, welding blanket
3. Aerospace thermal ablation covers
