Flexible Hose Fabricating Material: Silver Heat Reflective Aluminum Fiberglass Cloth
Silver Heat Reflective Aluminum Fiberglass Cloth For Flexible Hose Fabricating Purpose
Produce name: aluminum foil coated fiberglass fabric

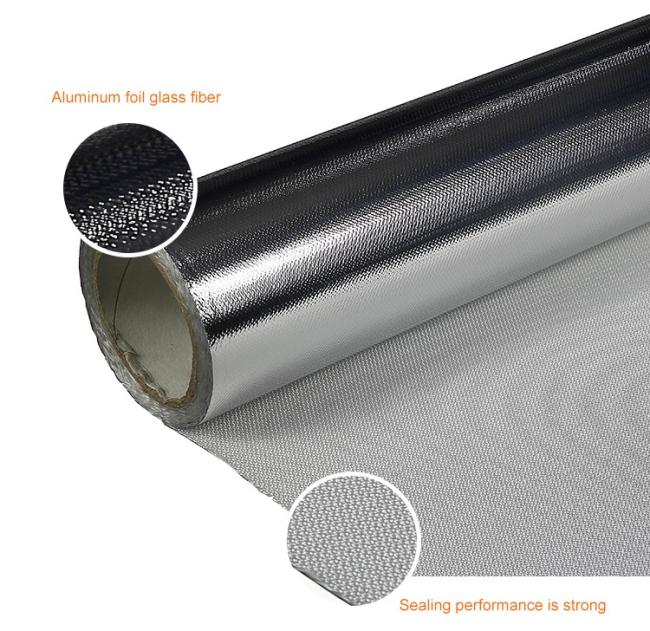

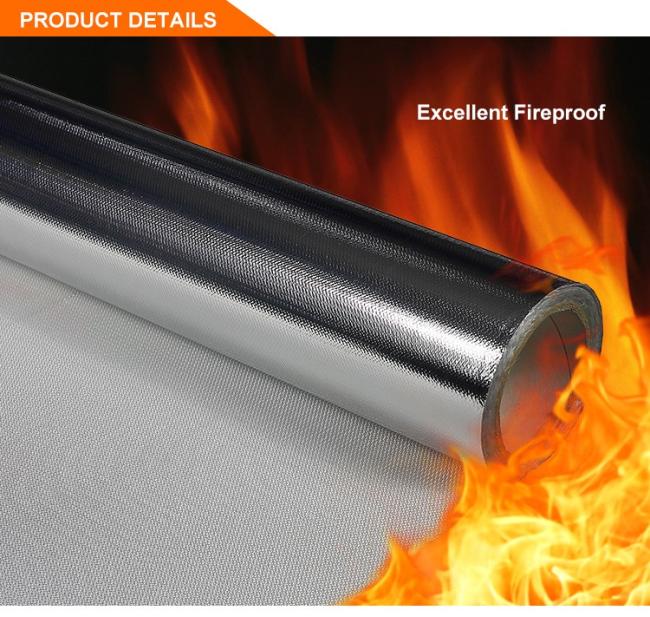

Our aluminum foil laminated fiberglass cloth is made of fiberglass fabrics laminated in an aluminum foil or film. It can resist extreme heat and has a soft surface, high performance, good reflective effect, sealing insulation, fireproof,gas-proof and waterproof. The thickness of aluminum foils is from 0.2mm to 2.5 mm.
Usage: heat retardant curtain/thermal insulation cover/welding protection/fire protection/safety cloth and apron/aluminum foil backed insulation /non-metallic compensator/anti-corrosion
Temperature Resistance:150C
Color: silver/grey/or customized
| BASE FABRIC | Base fabric style No. GF430 | ||
| (Metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 33 1*4 | ECG 150 1/4 | |
| Weft | EC9 33 1*4 | ECG 150 1/4 | |
| Construction | |||
| Warp | 18 ends /cm | 48 ± 3 ends/inch | |
| Weft | 12.6 picks /cm | 32 ± 3 picks/inch | |
| Weight | 430 ± 20 g/m2 | 12.6 ± 0.58 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.02 mm | 0.0145 ± 0.0008 inch | ASTM D1777-96 |
|
|
|||
| COATED FABRIC | Coating style No. AL114-6002 | ||
| Coating | Aluminum foil (14 microns) laminated ,one side | ||
| Weight | 460 ± 20 g/m2 | 13.5 ± 0.59 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.40 ± 0.03 mm | 0.04 ± 0.0012 inch | ASTM D1777-96 |
| Color | Silver | ||
| Flame resistance | Non-combustible | ||
| Temp resistance |
Glass fabric up to 5500C (10000F) Aluminum foil up to 1500C (3000F) |
||
RELATED PRODUCT

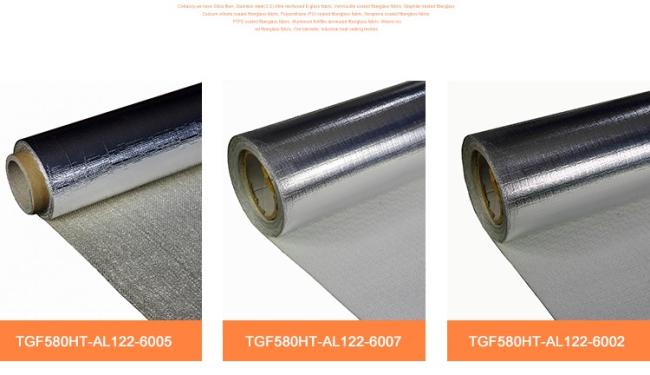

PRODUCT SELECTION GUIDE
| Style No. | Weight | Thickness | ||
| (g/m2) | Oz/yd) | (mm) | (inch) | |
| GF200-AL114--6001 | 250 | 7.3 | 0.21 | 0.08 |
| GF430-AL114--6002 | 470 | 13.8 | 0.42 | 0.016 |
| GF580-AL122--6005 | 630 | 18.5 | 0.75 | 0.03 |
| TGF1000-AL118--6007 | 1050 | 31 | 1.5 | 0.059 |
FAQ
1. F: Why do you choose us?
Q: Suntex management and staff have over 20 years of cumulative experience in industrial textiles. With state-of-the-art equipment, Suntex is committed to offer customers high quality and cost-effective products.
2. F: What is your delivery time?
Q: Generally we will within 30 days of delivery to you, depending on the number you need us here to determine the time of delivery
3. F: What is your shipping port?
Q: Normally Shanghai port, or according to customer’s request.
4. F: Can you produce customized goods?
Q: Surely, we can be customized according to your demanding.
5. F: What kinds of payment you accept?
Q: We accept T/T, D/A, L/C, D/P.
6. F: Do you have other production?
Q: Certainly, we have Silica fiber, Stainless steel(S.S) Wire reinforced E-glass fabric, Vermiculite coated fiberglass fabric, Graphite treated fiberglass fabric, Calcium silicate coated fiberglass fabric, Polyurethane (PU) coated fiberglass fabric, Neoprene coated fiberglass fabric, PTFE coated fiberglass fabric, Aluminium foil/film laminated fiber glass fabric, Weave lock/ finished fiberglass fabric, Fire blankets, Industrial heat sealing textiles, Tailor-made solutions for thermal insulation needs. We are looking forward to your enquiry.
