Aluminum Foil Fiberglass Cloth
Introduction

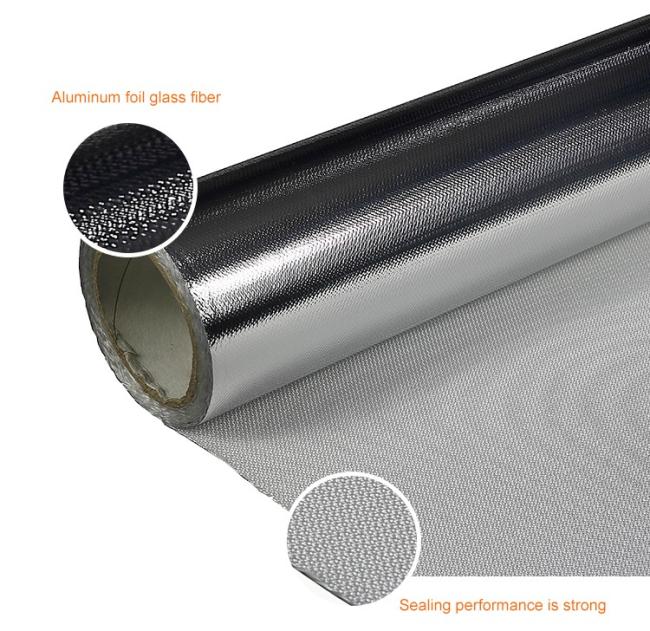

Aluminum foil/film laminated fiberglass fabrics
The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation protects personnel or equipments by reflecting radiant heat. Suntex uses the high temperature adhesive to ensure the maximum working temperature up to 150 0C.
-One side or both sides aluminum foil/film laminated available.
-Thickness of aluminum foils available from 0.0007mm to 0.005 mm
-Width of fabrics available from 1000mm to 1520mm.

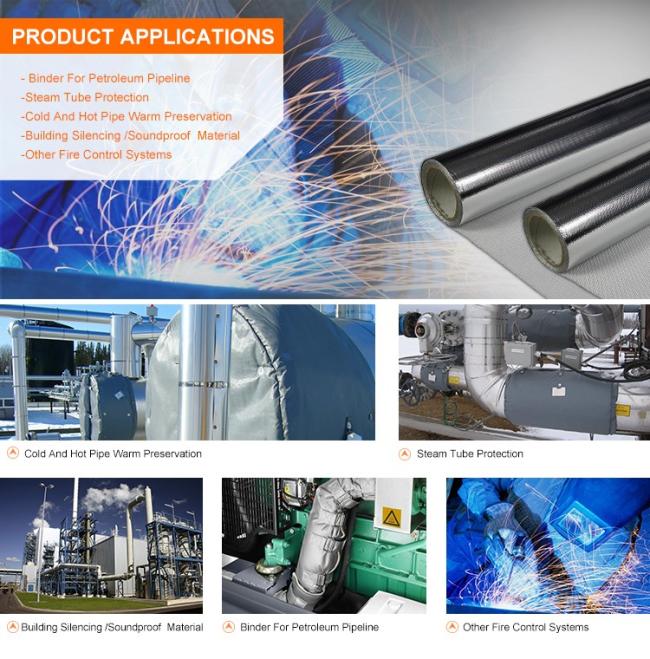

Main applications:
-Heat-retardant curtains or screens
-Thermal insulation covers, mattress and
pads
-Welding/fire protection
-Safety cloth and apron
-Other fire and smoke control systems
Advantages
--Easy to be cut, sewn and fabricated.
--High temperature resistance.Up to 550 C
--Asbestos free, halogen free.
--Easy to be cleaned.
--Minimized the airborne dust fibers, reduce the itch to skin
| BASE FABRIC | Base fabric style No. GF430C | ||
| (Metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 33 1*4 | ECG 150 1/4 | |
| Weft | EC9 33 1*4 | ECG 150 1/4 | |
| Construction | |||
| Warp | 18 ends /cm | 48 ± 3 ends/inch | |
| Weft | 12.6 picks /cm | 32 ± 3 picks/inch | |
| Weight | 430 ± 20 g/m2 | 12.6 ± 0.58 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.02 mm | 0.0145 ± 0.0008 inch | ASTM D1777-96 |
|
|
|||
| COATED FABRIC | Coating style No. AL114-6002 | ||
| Coating | Aluminum foil (18 microns) laminated ,one side | ||
| Weight | 470 ± 20 g/m2 | 13.8± 0.59 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.39 ± 0.03 mm | 0.04 ± 0.0012 inch | ASTM D1777-96 |
| Color | Silver | ||
| Flame resistance | Non-combustible | ||
| Temp resistance |
Glass fabric up to 5500C (10000F) Aluminum foil up to 1500C (3000F) |
||
Related Style
| Style No. | Weight | Thickness | ||
| (g/m2) | Oz/yd) | (mm) | (inch) | |
| GF200-AL114--6001 | 250 | 7.3 | 0.21 | 0.08 |
| GF430-AL114--6002 | 470 | 13.8 | 0.42 | 0.016 |
| GF580-AL122--6005 | 630 | 18.5 | 0.75 | 0.03 |
| TGF1000-AL118--6007 | 1050 | 31 | 1.5 | 0.059 |
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q:Why do you choose us?
A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.
3. Q:What is your delivery time?
A:Generally we will within 30 days of delivery to you
4. Q:Can you product the customized goods?
A:Surely, we can be customized according to your demanding.
5. Q:What kinds of payment you accept?
A:We accept T/T, L/C ,D/P or other.
6. Q:Do you have other production?
A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass
fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,
Aluminized aramid fabric . We are looking forward to your enquiry.
