Heat resistant material silicone rubber coated fiberglass fabrics for flexible expansion joint
Silicone coated fire-resistant fiberglass cloth from Suntex offers good resistance to extreme temperatures, being able to operate normally from -50°C to +250°C. It also has excellent weatherproof, water repellent, good chemical resistance to acids and lye, good mechanical properties for make-up.
Suntex provides one-sided/double-sided silicone coated fire-resistant fiberglass cloth with many varieties of coating weight, colors and widths for difference applications.
GF880P-SI254-1047 is a medium weight woven fiberglass fabric with a specially formulated, flame retardant silicone rubber coating which provides greater life and improved resistance to abrasion, flexing, tear and puncture.
GF880P-SI254-1047 is designed for heavy duty removable insulation pads, flange and valve covers, welding curtains, equipment covers and compensators.

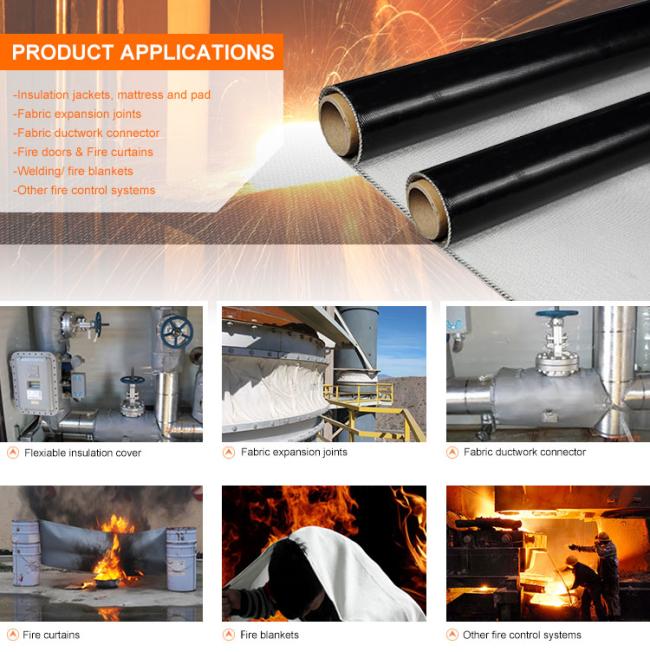

Main applications
-Insulation jackets, mattress and pad
-Fabric expansion joints
-Fabric ductwork connector
-Fire doors & Fire curtains
-Welding/fire blankets
-Other fire control systems
| BASE FABRIC | Base fabric style No. GF880P | ||||
| (Metric) | (English) | Test methods | |||
| Weave | 8H Satin | 8H Satin | |||
| Yarn | |||||
| Warp | EC9 136 1*2 | ECG 37 1/2 | |||
| Weft | EC9 136 1*2 | ECG 37 1/2 | |||
| Construction | |||||
| Warp | 18 ± 1 ends/cm | 48 ± 2 ends/inch | ASTM D 3775-96 | ||
| Weft | 14 ± 1 picks/cm | 33 ± 2 picks/inch | ASTM D 3775-96 | ||
| Weight | 880 ± 45 g/m2 | 26 ± 1.3 oz/yd2 | ASTM D3776-96 | ||
| Thickness | 0.76 ± 0.06 mm | 0.03 ± 0.002 inch | ASTM D1777-96 | ||
| COATED FABRIC | Coating style No. SI254-1047 | ||||
| Coating | Silicone rubber coated both sides | ||||
| Weight | 1120 ± 50 g/m2 | 32.9 ± 1.4 oz/yd2 | ASTM D3776-96 | ||
| Thickness | 0.95 ± 0.05 mm | 0.37 ±0.002 inch | ASTM D1777-96 | ||
| Color | RED | ||||
| Fire resistance | Flame retardant | ||||
| Temp resistance |
Glass fabric up to 5500C Silicone rubber coating up to 2600C |
||||
| Style No. | Weight | Thickness | color | Coating | ||
| (g/m2) | Oz/yd) | (mm) | (inch) | |||
| GF200T-SI220-1003 | 260 | 7.6 | 0.23 | 0.09 | White | Double side |
| GF430P-SI233-1015 | 560 | 16.5 | 0.42 | 0.0165 | Silver Grey | Double side |
| GF430P-SI244-1017 | 590 | 17 | 0.45 | 0.0177 | Red | Double side |
| GF430P-SI261-1020 | 730 | 21.5 | 0.53 | 0.02 | Green | Double side |
| GF66OP-SI263-1033 | 960 | 28 | 0.72 | 0.0283 | Silver Grey | Double side |
| GF660P-SI165-1023 | 960 | 28 | 0.72 | 0.0283 | Black | Single side |
| GF880-SI244-1026 | 1080 | 32 | 0.95 | 0.374 | Red | Double side |
| GF880P-SI253-1027 | 1120 | 33 | 1 | 0.039 | Silver Grey | Double side |
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q:Why do you choose us?
A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.
3. Q:What is your delivery time?
A:Generally we will within 30 days of delivery to you
4. Q:Can you product the customized goods?
A:Surely, we can be customized according to your demanding.
5. Q:What kinds of payment you accept?
A:We accept T/T, L/C ,D/P or other.
6. Q:Do you have other production?
A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass
fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,
Aluminized aramid fabric . We are looking forward to your enquiry.
