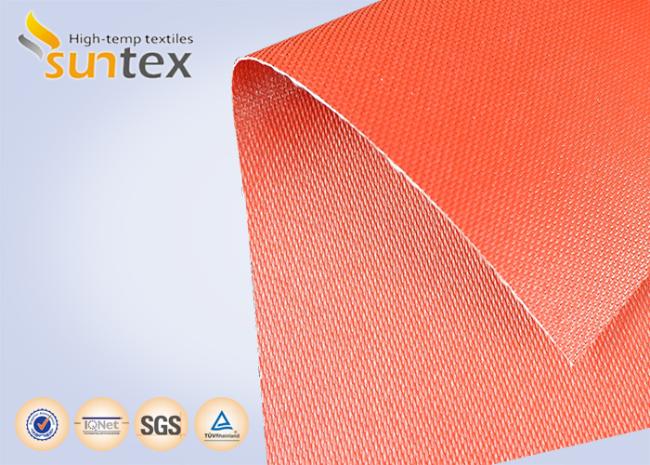

1 Mm Thickness Expansion Joint Cloth Silicone Coated Fiberglass Fabric OEM
1 mm Thickness Silicone Coated Fiberglass Fabric Fire Material Red OEM
Description:
Silicone coated fiberglass fabric has quite similar characteristics to those of PTFE coated fiberglass fabric.But they are more flexible,very non-stick,non-slip surface and more tear resistance. These fabric are available coated on one side and both side in red, gray, black etc color available in 0.1mm to 3mm thickness.
Parameter List:
| BASE FABRIC | Base fabric style No. GF880C | |||
| (Metric) | (English) | Test methods | ||
| Weave | 8H Satin | 8H Satin | ||
| Yarn | ||||
| Warp | EC9 136 1*2 | ETG 37 1/2 | ||
| Weft | EC9 136 1*2 | ETG 37 1/2 | ||
| Construction | ||||
| Warp | 18 ± 1 ends/cm | 48 ± 2 ends/inch | ASTM D 3775-96 | |
| Weft | 14 ± 1 picks/cm | 33 ± 2 picks/inch | ASTM D 3775-96 | |
| COATED FABRIC | Coating style No. SI244-1155 | |||
| Coating | Silicone rubber coated both sides | |||
| Weight | 1080 ± 50 g/m2 | 32 ± 1.4 oz/yd2 | ASTM D3776-96 | |
| Thickness | 0.9 ± 0.05 mm | 0.035 ±0.002 inch | ASTM D1777-96 | |
| Color | Red | |||
| Fire resistance | Flame retardant | |||
| Temp resistance | Silicone coating up to 2500C Glass fiber up to 5500C |
4800F 10000F |
||
Typical Applications:
Thermal insulation covers
Fire blanket
FLexible ducts
Air connector
Advantage:
Good heat insulation
Good chemical resistance
Good dielectric properties
Good weather ability
Superior Release Non-stick surface
High temp resistant up to 230째C
Excellent release properties
Superior abrasion resistance
