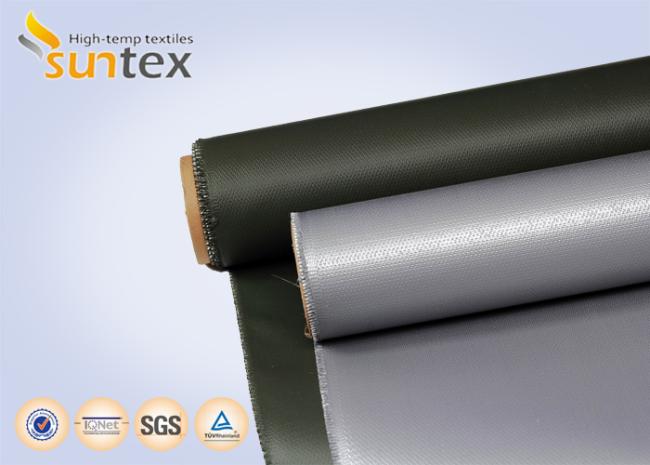

Grey Color Fiberglass Silicone Coated Glass Fabric Insulation Jacket External Material
Grey Color Fiberglass Silicone Coated Glass Fabric Insulation Jacket External Material
Description:
Suntex Products stocks and offers a wide array of High Temperature Silicone Fiberglass Fabrics. These cloths are used in the fabrication of removable insulation blankets, pipe wrapping, turbine blankets, fittings and flange covers and engine exhaust pipe covers. Other fabrics available include Vermiculite versions. See our vast inventory of fiberglass listed below for a solution.
High Temperature Fabrics are suitable for temperature ranges from 300ºF up to 2,300ºF. Many are manufactured with temperature resistant yarns and can be subjected to various treatments and coatings. We offer one of the largest inventories of High Temperature Fabrics available in the insulation market.
Parameter List:
| BASE FABRIC | Base fabric style No. GF431P | ||
| (Metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
|
|
|||
| COATED FABRIC | Coating style No. SI233-1066 | ||
| Coating | Silicone rubber coated on both sides | ||
| Weight | 560 ± 30 g/m2 | 16.47 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.45 ± 0.03 mm | 0.018 ± 0.0012 inch | ASTM D1777-96 |
| Color | SilverGrey | ||
| Fire resistance | Flame retardant | ||
| Temp resistance |
Glass fabric up to 5500C (10000F) Silicone rubber coating up to 2600C (4800F) |
||
Application:
Heat and cold insulation jacket
Fire protection for welding blanket or escape blanket
Smoke curtain
Fire door
Non metal compensator
Advantage:
Easy to cut and sew
Water proofing
Chemical retardant
Good process performance and low fuzz
Compatibility with multiple resin systems
Complete and fast wet-out
Good mechanical properties
