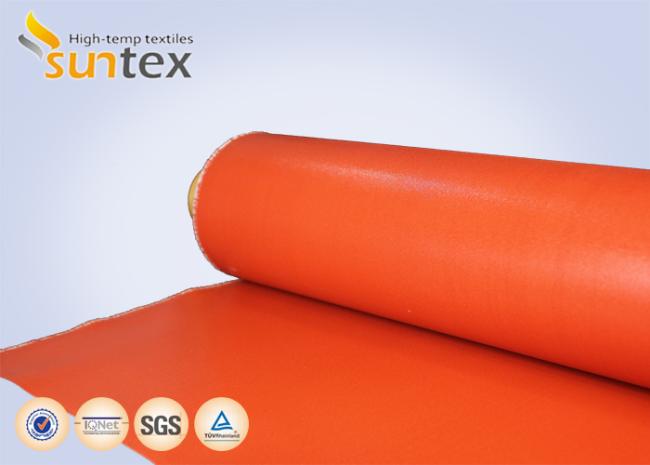

Colored Covers Thermal Insulation Fabri / Silicone Impregnated Fiberglass Cloth
Colored Covers Thermal Insulation Fabri / Silicone Impregnated Fiberglass Cloth
Description:
Silicon coating adds abrasion resistance and adds significantly to the fabric’s durability.
Produced from an extremely pure base fiber
Used at 1800°F / 982°C continuously
Molts above 3000°F / 1650
High abrasion resistance and tensile strength
Provides burn-through protection from molten metal and weld splatter
A high performance extreme temperature fabric, used in almost all industries for the highest heat protection available
Parameter List:
| BASE FABRIC | Base fabric style No. GF660P | |||
| (Metric) | (English) | Test methods | ||
| Weave | 8H Satin | 8H Satin | ||
| Construction | ||||
| Warp | 16 ± 1 ends/cm | 41± 2 ends/inch | ASTM D 3775-96 | |
| Weft | 15± 1 picks/cm | 38 ± 2 picks/inch | ASTM D 3775-96 | |
| Weight | 660 ± 45 g/m2 | 19.4 ± 1.3 oz/yd2 | ASTM D3776-96 | |
| Thickness | 0. 6 ± 0.06 mm | 0.024 ± 0.002 inch | ASTM D1777-96 | |
| COATED FABRIC | Coating style No. SI264-1022 | |||
| Coating | Silicone rubber coated both sides | |||
| Weight | 960 ± 50 g/m2 | 28 ± 1.4 oz/yd2 | ASTM D3776-96 | |
| Thickness | 0.72 ± 0.05 mm | 0.028 ±0.002 inch | ASTM D1777-96 | |
| Color | Red | |||
| Fire resistance | Flame retardant | |||
| Temp resistance | 2500C | 4800F | ||
Application:
1. High temperature insulation materials
2. High temperature gas/liquid filtration material or distinguisher materials and dust collecting material
3. Electronic equipment heat insulation materials
4. Fire-proof materials (fireproof protective cloth, fireproof curtain, fireproof blanket etc.)
5. Aerospace thermal ablation materials
6. Engine exhaust insulation materials
7. Industrial metallurgy & furnace thermal insulation materials
Advantage:
Compatibility with multiple resin systems
Complete and fast wet-out
Good mechanical properties
Easy to cut and sew
Oil retardant, chemical resistant
