Fire Curtains A Material: Anti-environment, Flame Resistant Silicone Coated Fiberglass Cloth
Anti-environment And Flame Resistant Silicone Coated Fiberglass Cloth For Fire Curtains And Welding Blankets

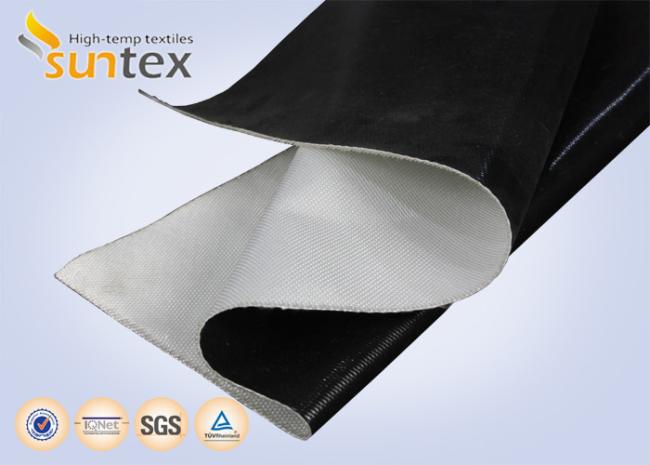

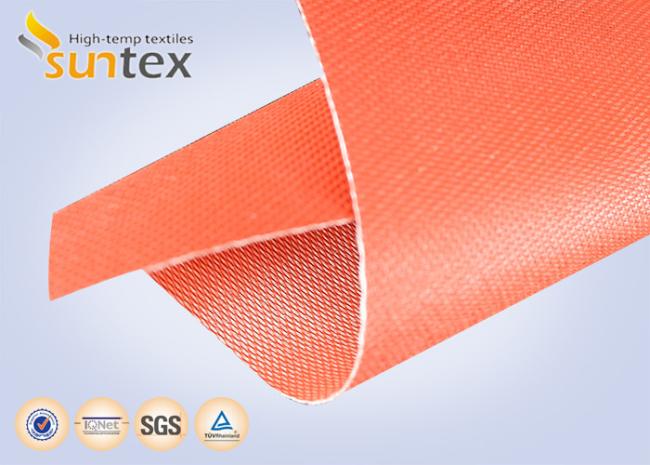

Suntex silicone coated fabric is using twill or Satin or Plain weaved fiberglass fabric, coated with special formulated silicone on one side or double sides. It has good resistance to extreme temperatures, Water Resistant, good mechanical strength, good chemical resistance to acids and lye, UV resistance, etc. The color can be Silver, Gray, white, yellow, black, red, or other colors.
Usage 1: insulation jackets, mattress, pad, heat shielding, heat resistant cloth, heat containment, hose covers, pipe wrap
, pyrotechnics, conveyor belting, cable protection
Usage 2: expansion joints, welding blanket, smoke curtain, flange covers, welding curtains, safety clothing, equipment covers
Color: red,grey,black,green,and customed colors
| BASE FABRIC | Base fabric style No. GF430P | ||
| (metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 68 1﹡2 | ECG 75 1/2 | |
| Weft | EC9 68 1﹡2 | ECG 75 1/2 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. SI233-1015 | ||
| Coating | Silicone rubber 2 sides | ||
| Weight | 560 ± 25 g/m2 | 16.5 ± 0.74 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.42± 0.02 mm | 0.016 ± 0.0007 inch | ASTM D1777-96 |
| Color | Silver grey | ||
| Fire resistance | ASTM E84-12: Class A, EN13501-1: A2 | ||
| Temp resistance |
Glass fabric up to 5500C (10000F) Silicone rubber coating up to 2500C (4800F) |
||
