Stainless Steel Wire Inserted Fiberglass Woven Fabric With Calcium Silicate Coating
Stainless Steel Wire Inserted Woven Fiberglass Fabric With Calcium Silicate Coating
Description:

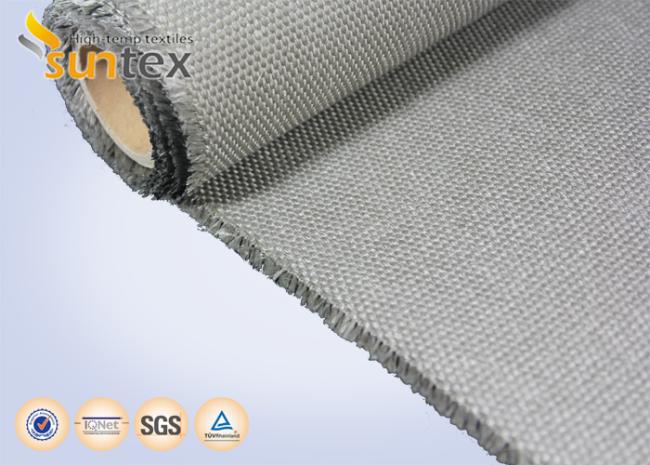

TGF1200S-CS213-5030 is a stainless steel wire inserted woven texturized fiberglass fabric coated with a formulated inorganic solution which provides high temperature and abrasion resistance properties for the manufacturer of gaskets, flexible expansion joints, removable jackets and other types of fire control systems. This style withstands temperature extremes of up to 750 0C, no significant deterioration in flexibility or strength, without smoke/fumes release when catches fire.
Fiberglass Cloth Date sheet:
| BASE FABRIC | Base fabric style No. TGF1200S | |||
| (Metric) | (English) | Test methods | ||
| Weave | Panama | Panama | ||
| Yarn | ||||
| Warp |
ET9 1250 tex S.S 316# wire |
ETG 4.0 S.S 316# wire |
||
| Weft |
ET9 770 tex S.S 316# wire |
ETG 6.5 S.S 316# wire |
||
| Construction | ||||
| Warp | 6 ± 0.6 ends /cm | 15 ± 2 ends/inch | ASTM D 3775-96 | |
| Weft | 5.5 ± 0.5 picks /cm | 14 ± 2 picks/inch | ASTM D 3775-96 | |
| COATED FABRIC | Coating style No. CS213-5030 | |||
| Coating | Formulated inorganic solutions coated on both sides | |||
| Weight | 1220 ± 50 g/m2 | 36 ± 1.47 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.4 ± 0.07 mm | 0.055 ± 0.003 inch | ASTM D1777-96 | |
| Color | Grey | |||
| Temp resistance |
7500C for the coating 8000C for the base fabric |
|||
Fiberglass Cloth Advantages:
Excellent anti abrasion property
Easy to be cut, sewn and fabricated
15 years experience Chinese supplier
3 part certificate insulation verified
High temperature esiatent up to 1000C
Short lead time
Manufacturer price
Application:
High temperature welding blanket
Removable insulation mattress, jacket & pad
Fire doors/smoke curtain
Dusts filter bag
Flexible expansion joints & compensators
