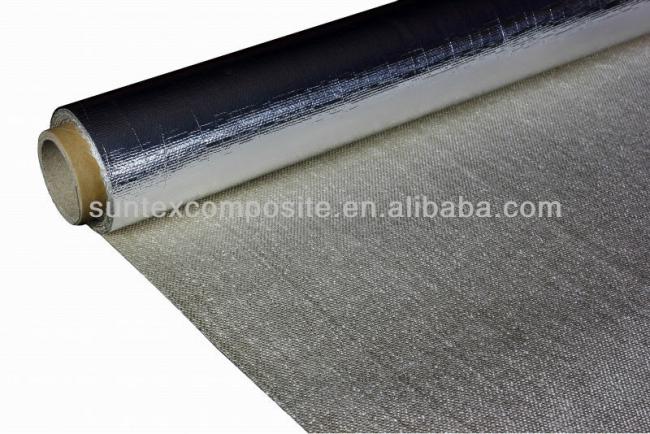

Fireproof & Waterproof Fiberglass Fabric: 1.7mm Aluminum Foil Coated Heat Shield
1.7mm Aluminum Foil Laminated Fiberglass Cloth Heat Shield Fiberglass Fabric For Fireproof And Waterproof
The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation protects personnel or equipment by reflecting radiant heat. Suntex uses the high-temperature adhesive to ensure the maximum working temperature up to 180C.
-One side or both sides aluminum foil/film laminated available.
-The thickness of aluminum foils available from 0.0007mm to 3mm or customized.
-Width of fabrics available from 1m to 3m, or customized.
Main applications:
1.Heat-retardant curtains or screens, heat shields
2.Thermal insulation covers, mattress, jacket, blanket, and pads
3.Welding/fire protection
4.Chemical and shipbuilding industry, pipe insulation, piping protection
5.Other fire and smoke control systems
| BASE FABRIC | Base fabric style No. TGF1250 | ||
| (Metric) | (English) | Test methods | |
| Weave | Plain | Plain | |
| Yarn | |||
| Warp | ET9 1290 tex | ETG 3.88 | |
| Weft | ET9 1290 tex | ETG 3.88 | |
| Construction | |||
| Warp | 6 ± 0.5 ends/cm | 15 ± 1 ends/inch | |
| Weft | 3.15 ± 0.3 picks/cm | 8 ± 1 picks/inch | |
| Weight | 1190 ± 50 g/m2 | 35 ± 1.5 oz/yd2 | ASTM D3776-96 |
| Thickness | 1.52 ± 0.05 mm | 0.0598 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. AL118-6007 | ||
| Coating | Aluminum foil (18 microns) laminated on one side. | ||
| Weight | 1350 ± 80 g/m2 | 39.70 ± 2.35 oz/yd2 | ASTM D3776-96 |
| Thickness | 1.55 ± 0.1 mm | 0.061 ± 0.004 inch | ASTM D1777-96 |
| Color | Silver | ||
| Flame resistance | Non-combustible | ||
| Temp resistance |
Glass fabric up to 5500C (10000F) Aluminum foil up to 1800C (3500F) |
||
