Flame Retardant Fiberglass Cloth | 0.4mm Aluminized Aluminum Foil, Thermal Insulation

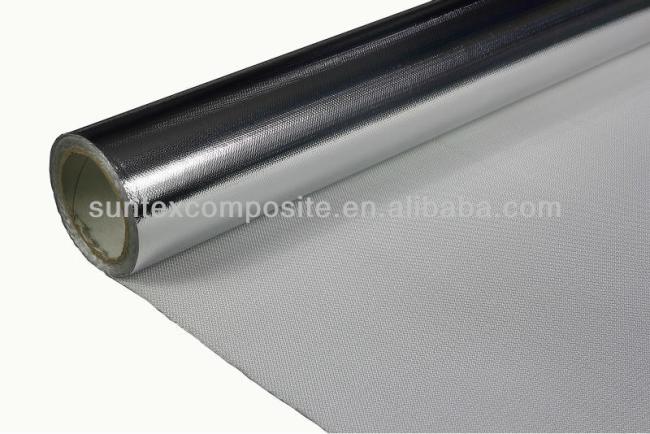

0.4mm Aluminum Foil Fabric Aluminized Fabric Thermal Insulation Material Flame Retardant Fiberglass Cloth
The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation protects personnel or equipment by reflecting radiant heat. Suntex uses the high-temperature adhesive to ensure the maximum working temperature up to 550C.
-One side or both sides aluminum foil/film laminated available.
-The thickness of aluminum foils available from 0.0007mm to 3mm or customized.
-Width of fabrics available from 1m to 2m, or customized.

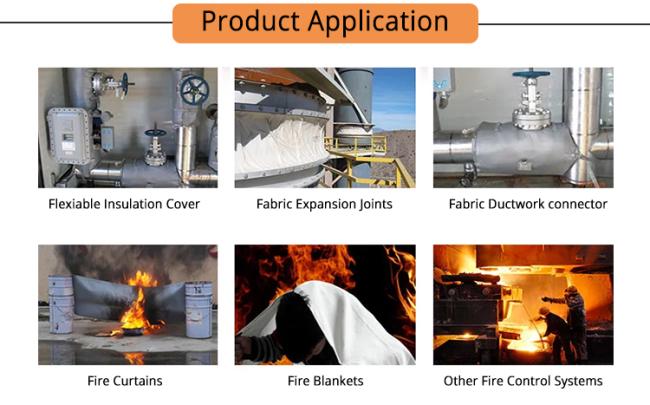

Main applications:
1.Heat-retardant curtains or screens, heat shields
2.Thermal insulation covers, mattress, jacket, blanket, and pads
3.Welding/fire protection
4.Chemical and shipbuilding industry, pipe insulation, piping protection
5.Other fire and smoke control systems
| BASE FABRIC | Base fabric style No. GF430 | ||
| (Metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 33 1*4 | ECG 150 1/4 | |
| Weft | EC9 33 1*4 | ECG 150 1/4 | |
| Construction | |||
| Warp | 18 ends /cm | 48 ± 3 ends/inch | |
| Weft | 12.6 picks /cm | 32 ± 3 picks/inch | |
| Weight | 430 ± 20 g/m2 | 12.6 ± 0.58 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.02 mm | 0.0145 ± 0.0008 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. AF110-6008 | ||
| Coating | Aluminised polymer film, one side | ||
| Weight | 450 ± 20 g/m2 | 13.2 ± 0.59 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.39 ± 0.03 mm | 0.015 ± 0.0012 inch | ASTM D1777-96 |
| Color | Silver | ||
| Temp resistance |
Glass fabric up to 5500C (10000F) Aluminum foil up to 1400C (3000F) |
||
