Pet Food Production Line , Cat Dog Food Making Double Screw Extruder

1.Product Description

This line can be adjusted to produce various shapes of pet food for cat, dog, fish, shrimp, bird and so on. It has many production capacities to choose according to your specific requirements. High automatic, easy operation, stable performance, easy maintenance and wide range of materials are the main features of this line. This line adopts bone powder, fish meal, corn powder and so on as raw materials.The final feed is nutritional, multishape, attractive, highly digestible which can be loved by your pet and fish.

2.Technical parameters

3.Sample

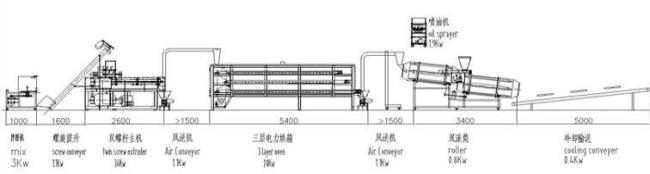

4.Production Process

a) Mixing materials

b) Extruding different shape Pet Treats Chews Dog Food by changing the die

c) Cooling to remove moisture

d) Cutting the pet treats in regular length

f) Packing

5.Features

1. Fully automatic control system for heating and circulated cooling accurately
2. Direct transmission of motor and distribution box reduces energy loss.
3. Imported bearing group with higher bearing capacity
4. Equip with water injecting device on barrel to meet require of various raw material and quality.
5. High-speed tool steel with hardness HRC≥62 to ensure a longer service life.
6. Modular combination of screws at will to meet require of different raw material.
7. Suspension type rotary cutter with bearing adjusting device to ensure quick,safe and accurate
8. All barrels inlaid alloy sleeve, easy to replace and extend the life span of screw. All barrels inlaid cooling water through, spread around alloy sleeve, and can accurate constant temperature required
9. All screw sleeves is kneading, ensure that not accumulate material. The screw is installed by blocks, and can be replaced optionally ratio to achieve requirements for product. Screw sleeve is installed by spline, and it is convenient and efficient. Quality of screw sleeve according to different prices is divided into: Cr12MoV, 38CrMoAl38, W6Mo5Cr4V2.

​

6.Packaging & Shipping

A. We will pack all necessary machines into wooden cases. For drying machine, and heavy extruders, we will fix them in the container with very strong iron wire.

B. If by LCL for small quantity machines, we will let send to QINGDAO port for loading.

C. If need containers, our trucks will take the containers from port to our factory for professional and safely loading, and then return to port for shipment.

7. Service

7.1 1 year warranty period.
7.2 Supply free fittings and general tool.
7.3 Engineers available to service machinery overseas.
7.4 Supply formula of raw materials.
7.5 Workshop design suggestion.
