Stainless Steel Customized Dry Dog Food Making Machine Production Line 140-160 Kg / H
140-160kg/h Dry Dog Food Making Machine Pet Food Production Line For Sale
1. Description
Multifunctional Full Automatic Pet Food Production Line is deloped and improved by Shandong Joyang Machinery Co., Ltd.It uses meat meal, fish meal, corn powder, soya meal and other grains powder as main materials to make the pet food, such as dog, cat, fish, bird food etc. With different shapes and tastes by changing the dies and formulations. The pet foods are made under high temperature condition, and popular to the pet food market.
Automatic Dog Food Pellet Machine Pet Food Processing Line is applied to produce dry and wet type different shapes dog food (pet fishes,cultured fishes etc.). The puffing degree can be adjusted to produce floating or sinking feed type. This production line also produce dog, cat, bird feed and so on. The whole production line is stainless steel. It is fully continuous and automatic. The final shapes and sizes can be various by changing the moulds. Free formula and moulds is provided.
2. Raw material
Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.
can also add fresh bone, meat, etc.
3. Technical Paramenter
|
Model |
JY- 65 |
JY- 70 |
JY- 85 |
|
Installed Power |
76 kw |
95 kw |
178 kw |
|
Power Consumption |
54 kw |
66 kw |
125 kw |
|
Production Capacity |
140 - 160 kg/h |
240 - 260 kg/h |
500 kg/h |
|
Dimension |
17x2x2.5 m |
22x2x2.5 m |
26x2x3.5 m |

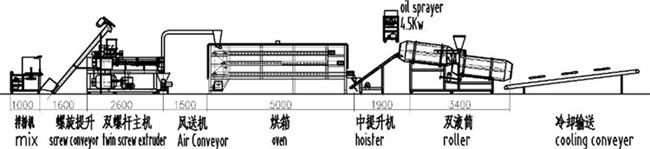

4. Flow chart
Mixer →Screw Conveyor →Extruder →Air conveyor→Dryer→Hoister→ Oil Sprayer→ Rollers with Flavor→Cooling Conveyor
5. Final product
pet food pellet, round, bone, flower, triangle shape etc. taste customized; color customized
6. Detail
Mixer
It is a mixer which can mix all the raw materials (powder form) with water and liquid chemical additives.

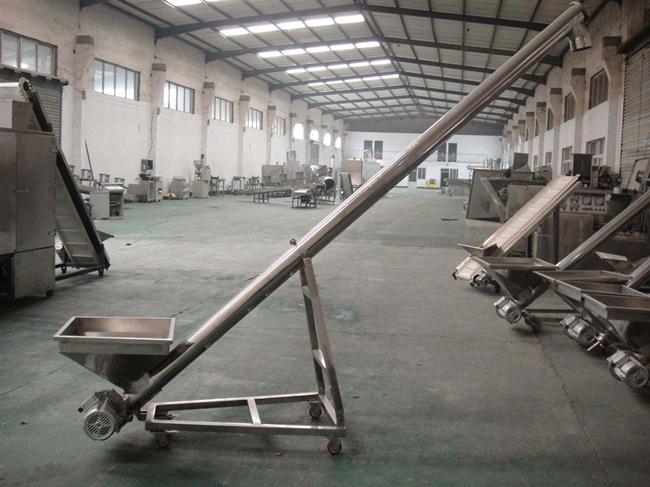

Screw conveyor
The mixed materials can be conveyed in the stainless steel roller to the feeding machine (feeder) of extruder without any leaking, dusting and pollution; Feed quantity and speed is even and stable.
Extruder (with feeder, control boxand cutting system)
The Twin-screw extruder is made of the feeding system, extruding system, cutting system, heating system and controlling system.
1. The screws are made of the alloy steel
2. The forced lubrication system
3. Auto-temperature control system
4, Auto-speed control system
5. Self- cleaning
Dryer
The heating way is electricity heating.
It is used for drying.
The net belt running speed can becontrolled to change the fooddrying time in the dryer.
The temperature also can be controlled.
Multi-layer dryer is with compact size than other type dryers.
Roller
There are two kinds of flavor: liquid and powder flavor.

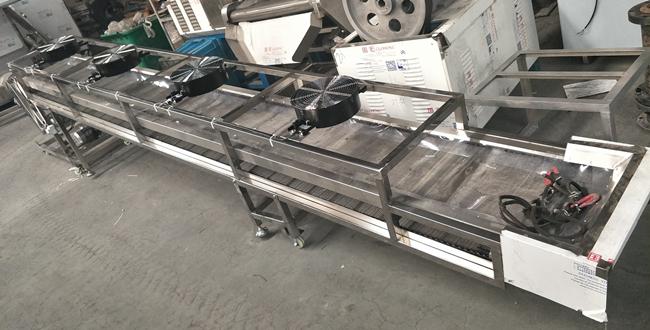

Cooling conveyor
1.The main function of cooling conveyor is to cool the products after drying.All parts are stainless steel, which meets the requirements of food safety.
2.Using fans to decrease the temperature of products with low energy and good effect.
3.The standard length is 5m, it could be customized as well.
Our service
We will provide the most thoughtful services for our clients:
Before sales service of the extrusion machine
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
During sales service of the extrusion machine
Management of equipments' long distance shipping from seller's factory to the named place by buyer;
After sales service of the extrusion machine
1. Training of equipment maintenance and operating personally;
2. New production techniques and formulas;
3. Provide 1 year complete warranty and life-time maintenance service.
Packing and shipping
Packing:
Inside: plastic bag for the extruder machine.
Outside: wooden case (adopt the wooden case or wooden pellets depended on clients' requirement).
Transportation:
Shipping, train, express, or upon clients’ demands.
