50kw 50kg/H Tunnel Type Chemical Material Drying Equipment Heating
50kw 50kg/H Tunnel Type Chemical Material Drying Equipment Heating
Product Dsercription
Traditional drying methods, such as flame, hot air and steam drying, all use the principle of heat conduction to transfer heat from the outside to the inside of the heated object, thereby gradually increasing the core temperature of the object, and it takes a certain time to complete. These traditional drying methods have a long time, high power consumption, uneven heating, up and down fluctuations, and high labor intensity.
The characteristic of microwave drying is that the microwave can penerate the inside and outside of the boject and heat it at the same time. The frequency is 2450 MHZ, there are hundreds of millions of oscillations, and the water molecules also have hundreds of millions of oscillations. The molecules rub against each other to generate heat and heat themselves.
Therefore, it can be widely used for drying and dehtdrating chemical product packaging materials. For example, cobalt oxalate, lithium hydroxide, pure mannose, ammonium tungstate, lithium cobaltate, barium carbonate, strontium carbonate, etc. The moisture content is dried from 40 to 0.5%, and the drying time is only 6 - 15 minutes. The drying temperature can be controlled at 80 - 90℃.
Product Parameters
| No | Model | Power (kw) | Dehydration Capacity (kg/h) | Sterilization Capacity (kg/h) | Size (m) |
| 1 | JY-12KWSP | 12 | 12 | 120 - 150 | 7×0.84×1.75 |
| 2 | JY-20KWSP | 20 | 20 | 192 - 240 | 9.4×0.84×1.75 |
| 3 | JY-30KWSP | 30 | 30 | 300 - 375 | 11.7×0.84×1.75 |
| 4 | JY-40KWSP | 40 | 40 | 396 - 495 | 10.52×1.06×1.75 |
| 5 | JY-50KWSP | 50 | 50 | 504 - 630 | 11.7×1.06×1.75 |
| 6 | JY-60KWSP | 60 | 60 | 600 - 750 | 12.86×1.06×1.75 |
| 7 | JY-70KWSP | 70 | 70 | 696 - 870 | 14.03×1.2×1.75 |
| 8 | JY-80KWSP | 80 | 80 | 804 - 1250 | 14.86×1.2×1.75 |
| 9 | JY-100KWSP | 100 | 100 | 1000 - 1250 | 15.2×1.2×1.75 |
| 10 | JY-150KWSP | 150 | 150 | 1500 - 1875 | 21.05×1.2×1.75 |
Feature
1. High efficiency, no waste of energy consumption. The microwave energy directly acts on the material itself, the microwave stainless steel heating and drying box and the air do not need to be heated.
2. Fast drying speed. The microwave heats and dries the material at the same time, and the moisture diffuses and evaporates from the inside to the outside.
3. No thermal inertia.
4. Safety and environmental protection. Adopt clean energy electric energy, no waste is generated during the operation of the equipment.
5. Simple operation and easy control. The equipment adopts fully automatic control, assembly line operation and high of mechanization.

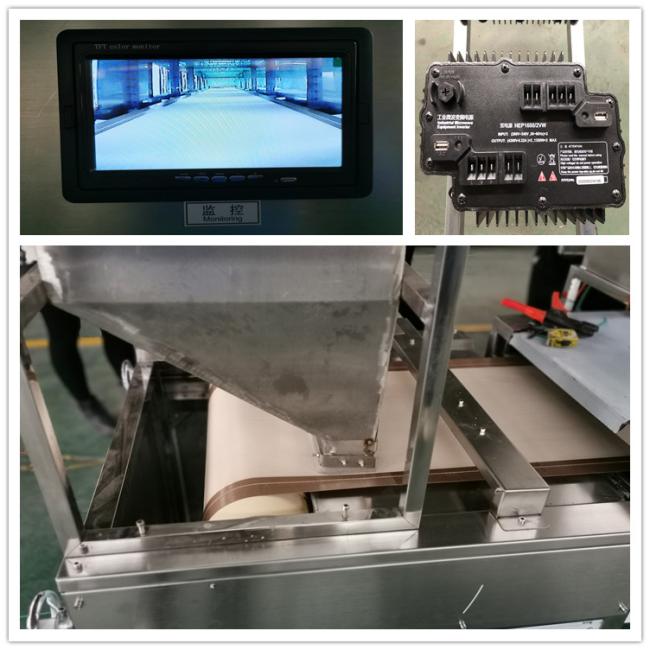

Picture of Machine
Sample
Customer & Service
We exported the machines to many countries all around the world,such as ltaly, German, Russia, Turkey, Australia, Indonesia, India etc. Almost all the customers speak highly of our machines and service,and they continue to buy from us again and again.
1.One year after installation (No more than 13 months after delivery).
2.Free consultation service before during and after sales.
3.Provide basic production techniques and formulas.
4.Overseas installation and training of equipment maintenance and operating personally.
Packaging & Shipping
1. Daub coal oil on the surface of the machines.
2. Plastic film as the inner packing.
3. Train, ship or depend on clients' requirement.
5.Debugging and inspecting of equipment until everything is functional before leaving the factory.
FAQ
Q:How long is your guarantee time?
A:One year after commissioning.
Q:How is the installation?
A:We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.
Q:If we show you our layout of factory, can you help to design the whole process line?
A:Of course, our experienced engineers and technical employee can help you to arrange the layout and installation of whole production line based on your real situation.
Q:How long is your delivery time?
A:Generally it is 7-10 days if the goods are in stock, or it is 20-25 days if the goods are not in stock, it is according to quantity.
Q:Will you help us if we accrue any problems in the future production?
A:Yes, we will always at your service. You can contact me via mobile, whatsapp, skype, viber, wechat and so on. I will help solve your problems as soon as possible.
