500kg/H Hot Air Dryer Machine Lemon Fruit Vegetable Drying Machine
500kg / H Hot Air Dryer Lemon Fruit Vegetable Drying Machine
Product Descripiton
The heat pump dryer is a new type of high-efficiency and energy-saving dryer. Its working principle is based on the principle of reverse Carnot cycle, using a small amount of electric energy, using a compressor to evaporate the working fluid into a gaseous state in the evaporator after passing through an expansion valve, and a large amount of Absorbing the heat energy in the air, the gaseous working fluid is compressed by the compressor into high temperature and high pressure gas, and then enters the condenser to release heat, heating the drying medium, and heating continuously in this way, the drying medium can be heated to 40-80 degrees Celsius. Save 2/3 of the electric energy than the electric dryer.
Product Parameters
| No | 1.5P | 3P | 8P | 15P | Double 15P |
| Air Supply Method | Side Air | Side Air | Rear Air | Rear Air | Rear Air |
| Power (kw) | 1.9 | 2.4 | 6.4 | 12 | 24 |
| Auxiliary Electric Heating (kw) | 2 | 3 | 12 | 24 | 48 |
| Heat Pump Host Size (m) | 1.88*1*1.072 | 1.88*1*1.47 | 2.23*1.16*1.56 | 2.23*1.16*1.56 | |
| Drying Room Size (m) | 1.27*0.76*1.85 | 3.3*2*2.2 | 5.6*2.2*2.7 | 8*3*2.8 | 8*5.9*1.56 |
| Wind Unit (set) | 0.25kw*2 | 0.25kw*8 | 0.25kw*16 | 0.75kw*16 | 0.75kw*32 |
| Cart Size (mm) | All-in-one | 800*870*1850 | 870*1200*1850 | 870*1200*1850 | 870*1200*1850 |
| Number of Carts | 4 | 6 | 15 | 30 | |
| Pallet Size (mm) | 680*710 | 430*730 | 600*800 | 600*800 | 600*800 |
| Number of Pallet | 18 | 96 | 144 | 360 | 720 |
| Loading (kg) | 80 - 100 | 250 - 450 | 600 - 100 | 1500 - 2000 |
About 4000 |
Feature
1.Easy to install.
2.Energy saving and environmental protection.
3.Reliable operation.
4.Long lasting.
5.Convenient operation, high degree of automation and intelligence.
6.Wide application range, not affected by climate.
7.Avoid secondary pollution of materials.
8.Accurate air temperature and humidity control.

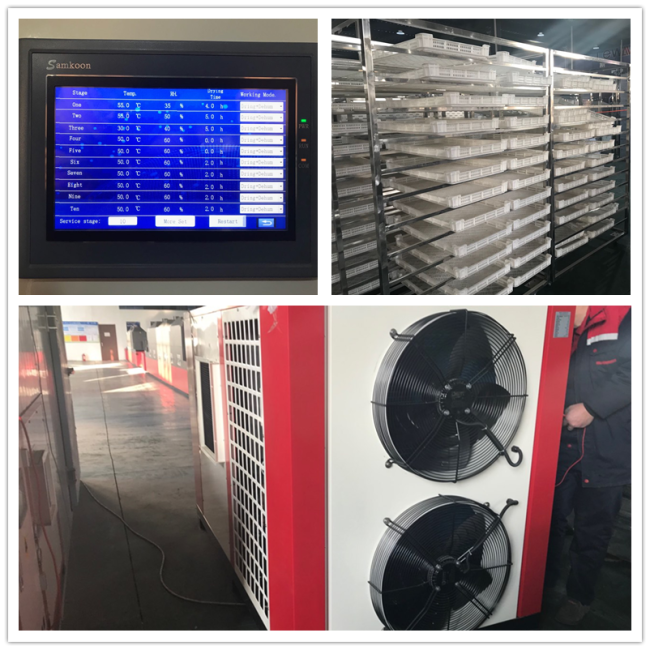

Picture of Machine
Sample
Customers & Service
We exported the machines to many countries all around the world, such as Italy, German, Russia, Turkey, Australia, Indonesla, India etc. Almost all the customers speak highly of our machines and service, and they continue to buy from us again and again.
1. One year fater installation (No more than 13 months after delivery).
2.Free consultation service before during and after sales.
3.Overseas basic production techniques and formulas.
4.Overseas installation and training of equipment maintenance and operating personally.
5.Debugging and inspecting of equipment until everything is functional before leaving the factory.
FAQ
Q:How long is your guarantee time?
A:One year after commissioning.
Q:How is the installation?
A:We will dispatch our technicians to your facory to guide you installation and commissioning work and training your operator.
Q:If we show you our layout of factory, can you help to design the whole process line?
A:Of course, our experienced engineers and technical employee can help you to arrange the layout and installation of whole production line based on your real situation.
Q:How long is your delivery time?
A:Generally it is 7 - 10 days if the goods are in stock, or it is 20 - 25 days if the goods are not in stock, it is according to quantity.
Q:Will you help us if we accrue any problems in the future production?
A:Yes, we will always at your service. You can contact me via mobile, whatsapp, skype, vibker, wechat and so on. I will solve your problems sa soon as possible.
