100-1500kg/h Dry Pet Food Production Line Cat Food Making Machine
100-1500kg/h Dry Pet Food Production Line Cat Food Making Machine
1. Description
Twin-screw Extruder Pet Food Processing Line Animal Food Making Machine is applied to produce different shapes pet food like dog food, cat food, fish feed, bird feed and so on.
The whole production line is fully continuous and automatic. The final shapes and sizes can be various by changing the moulds. Free formula and moulds is provided.
2. Raw material
Rice flour, corn flour, wheat flour, fish meal, bone powder etc. You can also add fresh bone, meat, etc.
3. Technical Paramenter
|
Model |
JY- 65 |
JY- 70 |
JY- 85 |
JY-95 |
|
Installed Power |
76 kw |
95 kw |
178 kw |
256 kw |
|
Power Consumption |
54 kw |
66 kw |
125 kw |
195 kw |
|
Production Capacity |
140 - 160 kg/h |
240 - 260 kg/h |
500 kg/h |
1000-1500kg/h |
|
Dimension |
17x2x2.5 m |
22x2x2.5 m |
26x2x3.5 m |
42x2.8x4m |
4. Final product

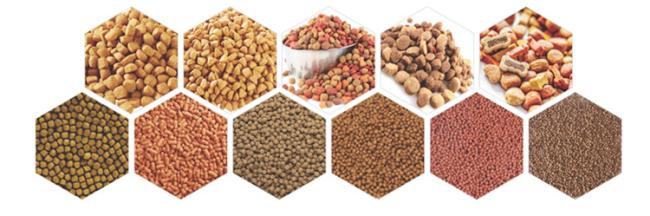

Pet food pellet, round, bone, flower, triangle shape etc. taste customized; color customized.
5. Details
Mixer →Screw Conveyor →Extruder →Air conveyor→Dryer→Hoister→ Oil Sprayer→ Rollers with Flavor→Cooling Conveyor
Mixer
It is a mixer which can mix all the raw materials (powder form) with water and liquid chemical additives.
Twin-screw Extruder (with feeder, control box and cutting system)
The Twin-screw extruder is made of the feeding system, extruding system, cutting system, heating system and controlling system.
1. The screws are made of the alloy steel
2. The forced lubrication system
3. Auto-temperature control system
4, Auto-speed control system
5. Self- cleaning
Dryer
It is used for drying pet food.
The net belt running speed can becontrolled to change the fooddrying time in the dryer.
The drying temperature also can be controlled.
We can supply the electric dryer, gas dryer, diesel dryer, steam dryer, even double energy dryer for you.
Roller
There are two kinds of flavor: liquid and powder flavor.
6. Our service
We will provide the most thoughtful services for our clients:
Before sales service of the extrusion machine
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
During sales service of the extrusion machine
Management of equipments' long distance shipping from seller's factory to the named place by buyer;
After sales service of the extrusion machine
1. Training of equipment maintenance and operating personally;
2. New production techniques and formulas;
3. Provide 1 year complete warranty and life-time maintenance service.
7. Packing and shipping
Packing:
Inside: plastic bag for the extruder machine.
Outside: wooden case (adopt the wooden case or wooden pellets depended on clients' requirement).
Transportation:
Shipping, train, express, or upon clients’ demands.
8. FAQ
Q: How long is your delivery timre?
A: Generally speaking, it is 7 days if the machines are in stock. Or it is 25 days if the
goods are out of stock.
Q: Could you supply all the parameters about the machines?
A: Of couse. We are delighted to supply all the informtion that you want to know.
Q: How about the after sale service?
A: We will send our engineers to your factory for installation and training.
