Full Automatic Dog Cat Pet Food Extruder Machine 500 Kg / H
500 Kg / H Pet Food Extruder Machine Dog Food Cat Food Making Machine Equipment
Production Description
The pet food production line gives pet food a unique shape, unique taste, and color, and adapts to the continuous development of the pet food market with the most scientific nutritional ratio and nutrition characteristics.
Production Parameters
| Model | Capacity | Production Line Power | Production Line Size |
| JY-65 | 140-160 kg/h | 94 Kw | 25*1.3*3 m |
| JY-70 | 240-260 kg/h | 127 Kw | 26*2*2.5 m |
| JY-70A | 400-600 kg/h | 135 Kw | 27*2.4*2.8m |
| JY-70B | 800-1000 kg/h | 158 Kw | 28*2.4*3m |
| JY-90A | 1-1.5 t/h | 196 Kw | 31*2.4*3 m |
| JY-90B | 1.5-2 t/h | 208 Kw | 35*3*6.5 m |
| JY-100A | 2-3 t/h | 223 Kw | 37*3*6.5m |
| JY-100B | 3-4 t/h | 238 Kw | 38*3*6.5m |
| JY-120 | 4-5 t/h | 325 Kw | 46*3.2*6.8m |
Feature
1. The production line has a high degree of automation, reducing labor costs.
2. The nutrition of pet food after puffing treatment is easier to be absorbed.
3. Stainless steel material, safe and harmless.
4. Different shapes of pet food can be made by changing the dies.
Flowchart Diagram
Main Machine

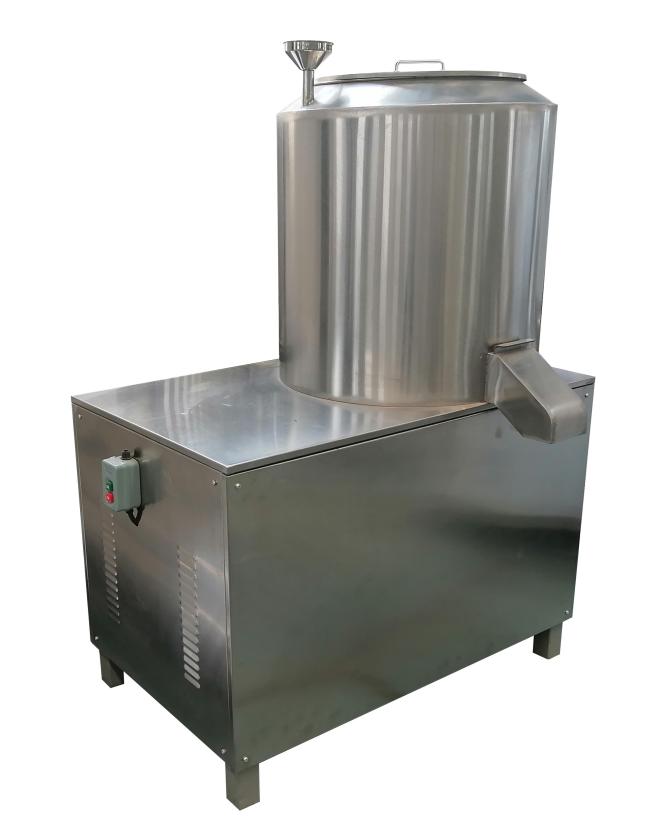

| Mixer |  |
This machine can mix all the different kinds of power materials with water. Due to the high speed of mixing braches 580Rpm, the different materials can be mixed evenly with water and some other liquid material. |

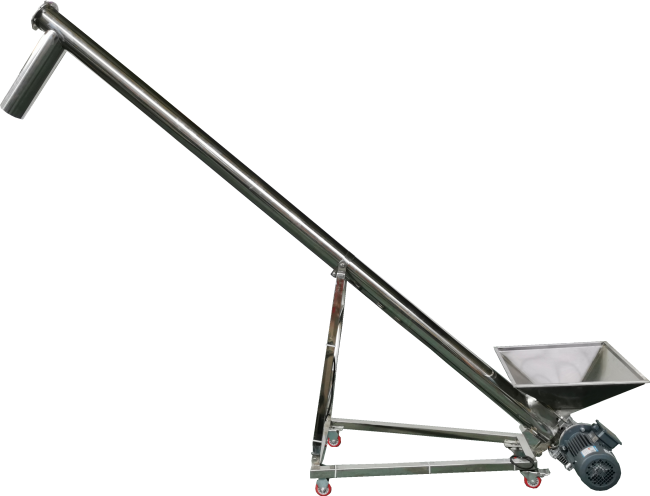

| Screw Conveyor |  |
This machine is used to elevate powder material into the next machine in a closed tube. It is clean and high efficiency. |
| Twin-Screw Extruder |  |
This machine is used to puff or cook the material via high temp and high pressure. With an automatic temp controlling system and automatic speed control system, you will get different crafts. The shape of the food can also be controlled by different molds. |
| Air Conveyor |  |
This machine can convey the food to the next machine via a closed stainless steel pipe by air. It is clean and high efficiency. There is a cyclone that can release the air and leave the food to the next machine. |
| Dryer |  |
The multi-layer dryer is with a compact design that can make the food be well dried in a limited space. We can adjust the number of layers and lengths depending on the output of the oven. It is a food standard stainless steel belt. The temp of the dryer and the drying time can both be controlled which can make sure that the food will be fully dried. We can also provide a gas dryer, diesel dryer, steam dryer or even double energy dryer. |
| Hoister |  |
The hoister is used to elevate the food into the next machine with flavor. It is with food standard rubber belt. The belt is with both horizontal vertical edges can make sure is no leaking. |
| Oil Sprayer |  |
This machine is used to spray oil and another liquid flavor on the snacks food or feed, There is a heating pipe inside the drum which can make the oil be liquid even in wintertime. |

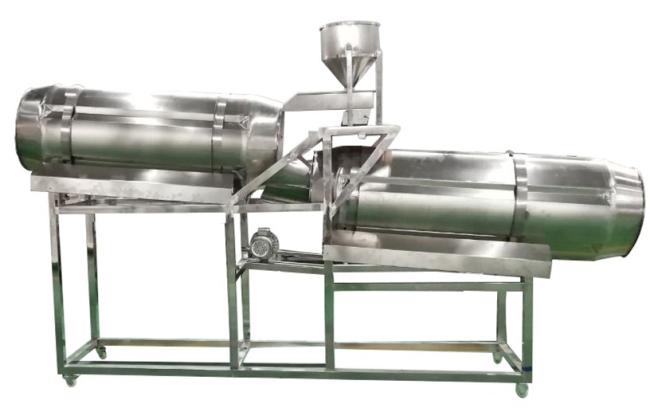

| Twin Rollers With Flavoring Machine |  |
This machine is used to flavor the food continuously. It is fully automatic. It is stainless steel. |
| Cooling Conveyor |  |
There are totally two functions for this machine. Cooling and conveying. Generally, there are fans over the stainless belt. It can also take the food from one workshop to another. |
Customer And Service
We exported the machines to many countries all around the world, such as Italy, German, Russia, Turkey, Australia, Indonesia, India, etc. Almost all the customers speak highly of our machines and they continue to buy from us again and again.
1. One-year complete warranty.
2. Free consultation service before during and after-sales.
3. Provide basic production techniques and formulas.
4. Overseas installation and traning of equipment maintenance and operating personally.
5. Debugging and inspecting of equipment until everything is functional before leaving the factory.
Packing
According to the size of different production lines, we choose suitable containers for loading.
The outside of the equipment is wrapped with a film to prevent it, and we use iron wires and ropes to fix the equipment to prevent damage to the equipment during transportation.
FAQ
Q: How long is your guarantee time?
A: One year after commissioning.
Q: How is the installation?
A: We will dispatch our technicians to your factory to guide you in installation and commissioning work and traning your operator.
Q: If we show you our layout of the factory, can you help to design the whole process line?
A: Of course, our experienced engineers and technical employee can help you to arrange the layout and installation of the whole production line based on your real situation.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock, or it is 20-25 days if the goods are not in stock, it is according to quantity.
Q: Will you help us if we accrue any problems in the future production?
A: Yes, we will always be at your service. You can contact me via mobile, WhatsApp, Skype, Viber, WeChat, and so on. I will help solve your problems as soon as possible
