Economic temperature and oil level pressure transducer
1. Electronic interface and signals definition
|
Electrical connection
|
|
|
|
Connection definition |
Cable color |
|
|
RS485+ |
Yellow |
|
|
RS485- |
Blue |
|
|
Power + |
Red |
|
|
power - |
Black |
|
2. Parameter
|
Spec. |
Value |
||
|
Pressure range |
0~2 mH2O ...... 200 mH2O |
||
|
Temperature range |
-40°C~85°C |
||
|
Load pressure |
1.5times nominal value pressure (1.5X) |
||
|
Rupture pressure |
3times nominal value pressure (3X) |
||
|
Accuracy |
±0.5%F.S |
||
|
Stability |
Typical value 0.2%F.S, |
||
|
Operating temperature |
-40°C~85°C |
||
|
Medium compatibility |
All Caustic Medium Compatible with 1Cr18Ni9Ti |
||
|
Output signal |
RS485 |
||
|
Power supply |
10~30Vdc |
||
|
Load pressure |
(U-10)/0.02(Ω) |
>100kΩ |
|
|
Insulation |
>100M Ω@50V |
||
|
Electrical connection |
waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68 |
||
|
Pressure port |
Submersible, thread mounted, M20×1.5, G1/4, G1/2, R1/2, NPT1/2 |
||
|
Pressure type |
G, S |
Response time: 10ms |
|
|
EMI/EMC |
EMI: EN50081-1/-2; EMC: EN50082-2 |
||
3. Application
- 1). Hydrologic monitoring
- 2). Constant voltage water supply
- 3). Frequency conversion water supply
- 4). Tail dam water level
- 5). Sewage treatment
- 6). Water saving irrigation
4. Feature
- 1). ±0.1,±0.25,±0.5%F.S
- 2). Diffusion silicon oil filled core body
- 3). Various measuring range and signal output
- 4). Submersible and thread mounted
- 5). RS485 Digital output
- 6). Intrinsically safe, explosion proof, CE certificate
- 7). RoHS compliant
5. Ordering information
GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package
- Type: WPT410
- Range: 0~2 mH2O ...... 200 mH2O= the upper limitation of the range
- Output:: RS485
- Power: 10~30Vdc,
- Pressure port : T=Submersible, M=M20×1.5, G=G1/4, G2=G1/2, R2=R1/2, N2=NPT1/2
- Electric connection:C=fixed cable outlet,
- Cable length: XXm=XX meter 1-150m
- Package: Bb, Foam

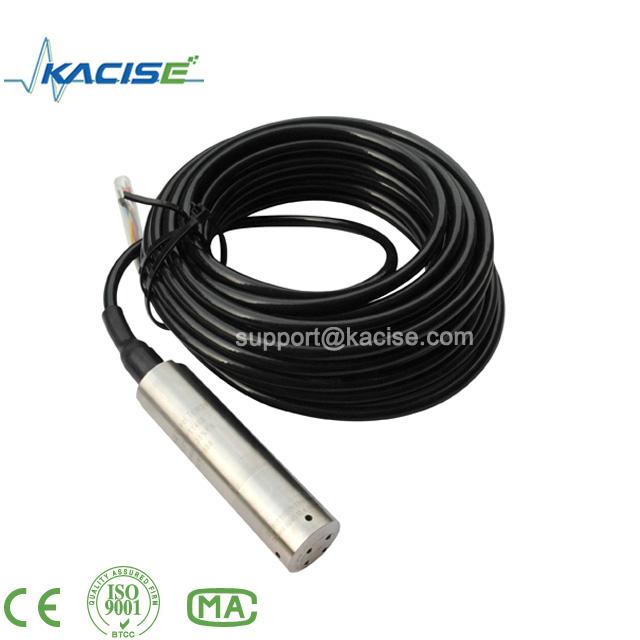

6. Product picture
 |
