High and Low Limit Alarm Values 50mg/m3 KAN130 Industrial Dust Concentration Measuring Instrument
KAN130 Industrial Dust Concentration Measuring Instrument
Product Introduction

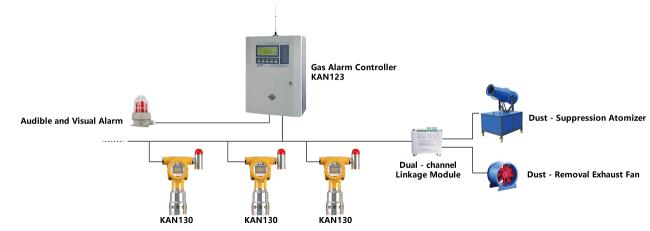

KAN130 can directly read the concentration of dust particles in the air. It detects dust information by using the principle of light refraction. The sensing probe of the measuring instrument is designed with an open - airflow and optical - path - shielded method to prevent the detection element from being contaminated by dust. It can be used in conjunction with monitoring systems or other controllers, and is suitable for continuous monitoring of dust concentration in various dust - generating workplaces. It has strong expandability, can be powered by solar panels, and can send relevant data information to the computer - port monitoring system via wireless communication.
Product Description
| Detection Principle and Type | Detection Range | Detection Type | High and Low Limit Alarm Values |
| Photoelectric induction | (10 - 1000) mg/m³ (Other ranges can be customized) | All kinds of dust, PM>10 | 50mg/m³ (Factory - set value) 100mg/m³ (Factory - set value) |
| Sampling Method and Electrical Interface | Operating Voltage and Power Consumption | Operation Method and Communication Distance | Specification |
| Diffusion type G3/4" thread (internal) | DC24V±6V, ≤3W (DC 24 V) | Infrared remote control distance < 8 meters ≤1000m (wired) ≤3500m (wireless, unobstructed) |
Cast aluminum, ≤1.5Kg, 280×166×90 |
| Explosion - proof Mark and Protection Level | Operating Temperature and Humidity | Communication Method | Output Method |
| Ex ib IIB T4 Gb: Ex ibD 21 T130°C IP66 | -10°C - +40°C, ≤85%RH | ABUS (branch line)/RS485 (branch line) (Optional communication methods below) LORA wireless communication |
4 - 20mA output, one - way powered GND output (OP) and one set of passive output, and the output following state can be set through adjustment |
