Product Description

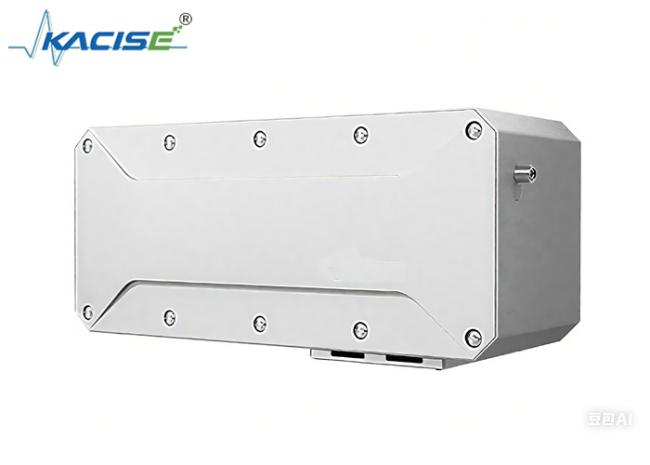

Laser Ammonia Monitor KGD-AM-211

Product Introduction

The Laser Ammonia Monitor KGD-AM-211 is an industrial device used to monitor the concentration of ammonia gas in pigsties. It features low power consumption, high-precision detection, and high resolution.

Product Features

TDLAS laser ammonia sensor with independent intellectual property rights
The sensor has a fast response speed, high measurement accuracy, and a long service life
Adopts narrowband laser spectral absorption technology, which has unique selectivity for ammonia and is not interfered by other gases, water vapor, or dust
Measurement range: 0～50ppm
Service life up to 10 years
Powered by 12V
Low power consumption

Technical Parameters

Detected Gas Type	Ammonia
Detection Range	0-50ppm
Detection Error	±2.5ppm
Response Time	T90≤20s
Measurement Cycle	1s-3600s
Product Dimensions	143.1mm (W) * 321.9mm (L) * 129.3mm (H)
Product Weight	6±0.3kg
Communication Method	RS485@12V system
Designed Service Life	10 years
IP Protection Rating	IP66
Explosion-proof Rating	UL Class1 Div2
Operating Conditions	Temperature: 5℃~40℃; Humidity: 0~100%RH (non-condensing)
Operating Air Pressure	101kPa
Power Supply Method	12V
Average Power	≤1W
