KSLV654-D Industrial Capacitive Level Sensor with IP68 Protection 200-10000 mm Range and High-Strength Nylon Housing
The KSLV654-D is a high-protection industrial capacitive level sensor designed for demanding industrial environments that require long-range, highly accurate, and durable liquid level measurement. With a high-strength nylon housing and imported PFA probe, this sensor provides excellent resistance to corrosion, mechanical stress, and harsh environmental conditions.
Supporting 2-wire and 3-wire 4–20 mA outputs, the KSLV654-D can be easily integrated into PLC, DCS, and other automation control systems. Its wide measurement range, superior accuracy, and high protection rating make it ideal for large tanks, industrial pipelines, and critical process applications.
■ Ultra-High Accuracy
- Absolute error as low as ±1 mm (for L ≤ 500 mm)
- Accuracy Class 0.1 for 500–1000 mm, Class 0.5 for 1000–10000 mm
Ensures precise liquid level measurement across a wide range.
■ Long Measurement Range
Measuring length: 200–10000 mm, suitable for large tanks, silos, and industrial vessels.
■ Wide Temperature Adaptability
- Measurement temperature: -40 to 120℃
- Probe temperature resistance: -60 to 150℃
Reliable performance in extreme temperature conditions.
■ High-Protection and Durable Design
- Protection level: IP68, suitable for submerged or wet industrial environments
- Probe material: Imported PFA, housing: high-strength nylon
Provides superior corrosion resistance and mechanical durability.
■ Multiple Signal Output Options
Supports 2-wire or 3-wire 4–20 mA, compatible with industrial automation systems.
■ High Stability and Low Drift
- Long-term stability: ≤0.1% FS/year
- Temperature drift: ≤0.02% FS/℃
Ensures consistent and reliable measurements over long-term use.
■ Flexible and Robust Installation
Threaded mounting: M33*2, allowing secure installation in industrial tanks and piping systems.
■ Large Probe Diameter for Enhanced Reliability
Probe diameter: ∅16 mm, designed for high stability and durability in demanding environments.
- Large Storage Tank Level Monitoring
- Chemical and Petrochemical Industry
- Water Treatment Systems
- Industrial Automation and Process Control
- Food and Beverage Industry (Large Vessels)
- Pharmaceutical Manufacturing
- Critical Process Applications in Harsh Environments
| Technical Parameter | Description |
|---|---|
| Order Length L | 200-10000 mm |
| Accuracy | Absolute error ±1 mm (L ≤ 500 mm), Accuracy class 0.1 (500 < L ≤ 1000 mm), Accuracy class 0.5 (1000 < L ≤ 10000 mm) |
| Measurement Temperature | -40 to 120℃ |
| Probe Temperature Resistance | -60 to 150℃ |
| Signal Type | 2-wire 4-20 mA / 3-wire 4-20 mA |
| Supply Voltage | 18-36 Vdc, Typical 24 Vdc |
| Pressure Range | -0.1 to 0.6 MPa |
| Long-term Stability | ≤0.1% FS / year |
| Temperature Drift | ≤0.02% FS/℃ (within -40 to 80℃) |
| Protection Level | IP68 |
| Probe Material | Imported PFA |

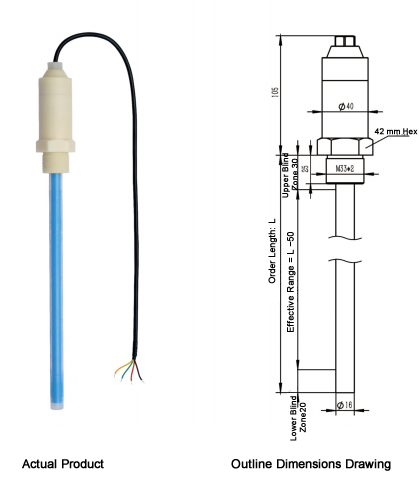

| Probe Diameter | ∅16 mm |
| Housing Material | High-Strength Nylon |
| Mounting Method | Threaded M33*2 |
| Dimensional Tolerance | ±3 mm |
