China Food Grade PTFE Ultrasonic Level Sensor with Chemical Resistance and IP67 Protection for Fluid Level Measurement for sale

Food Grade PTFE Ultrasonic Level Sensor with Chemical Resistance and IP67 Protection for Fluid Level Measurement

Name: Food Grade PTFE Ultrasonic Level Sensor with Chemical Resistance and IP67 Protection for Fluid Level Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1PCS

Delivery Time: 5-8 work days

Brand: KACISE

Product Description

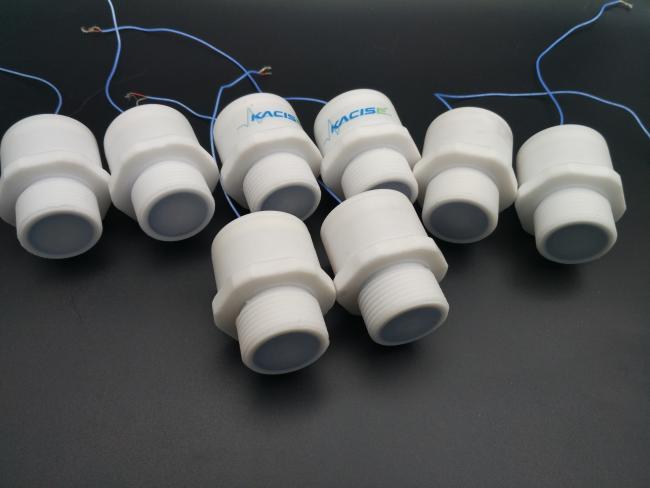

1"NPT Food Grade Chemical Resistance Whole Body PTFE Anti Corrosion Ultrasonic Level Sensor

Introduction

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC/PTFE housing, designed to meet IP67.

Features

IP67 Designed for outdoor or indoor environments
High sensitivity
Free run operation can continually measure and output ranger information
Sensor beam angle is 10 degrees (full angle)
Chemical Resistance Whole Body PTFE
Anti Corrosion
Suitable for Sanitary and Hygienic application

Applications

Tank level measurement
Bin level measurement
Proximity zone detection
People detection
Robot ranging sensor
Autonomous navigation
Multi-sensors navigation
Distance measuring
Food level detection
Industrial automation

Parameters

General Parameters		Mechanical Properties
Detection Range	200mm~3000mm	Connection	5 pin cable
Transducer Frequency	70KHZ	Weight	100g
Repeatability Precision	≤1%	IP grade	IP67
Response Time	<50ms
Beam Angle	7°±2
Temp. Compensation	inside/outside/fix temp.
Electrical Parameters
Operating Voltage	14.5VDC~27VDC
Limit Working Voltage	13VDC~30VDC
Power Consumption	≤30mA
Circuit Protection	short-circuit protection, overload protection
Output	Digital Output	RS485
	Analogue Output	0~5V
	Switch Output	0V / 5V
Ambient Environment
Operating Ambient Temp.	0~70℃ (-40~85℃, -55~125℃, etc, customizable)
Storage Temperature	-55~125℃
