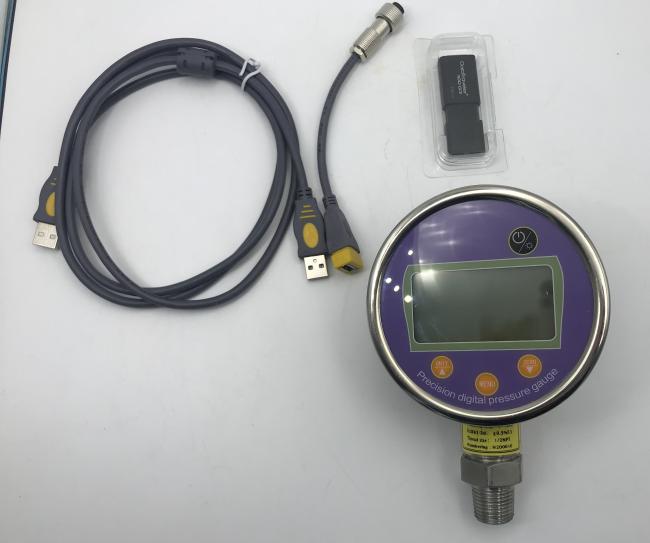

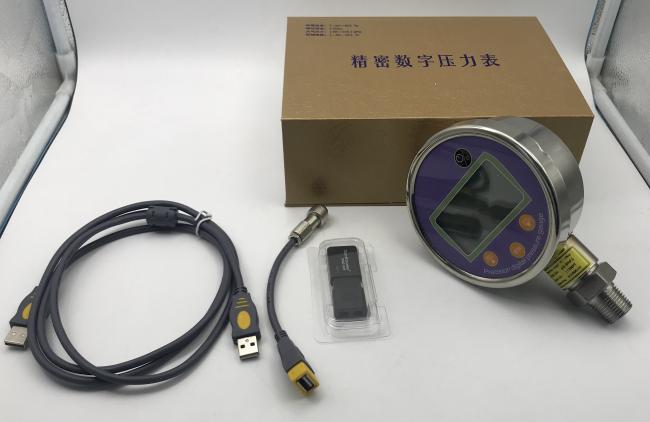

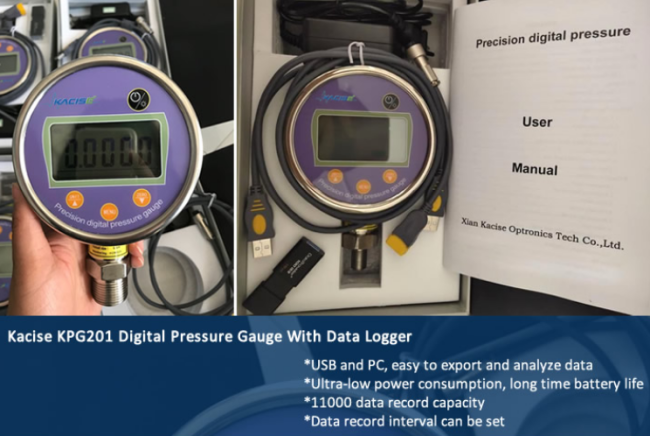

KPG201 Digital Pressure Gauge with Data Logger 0.05% Accuracy and 11000 Data Storage Capacity
KPG201 Battery Operated Digital Pressure Gauge with Data Logger is a digital gauge with local display and data storage and communication function together. 10 thousand data storage capacity, USB communication and other bundled software which has functions of data acquisition, analyze,report and graph. Humanized interface design and efficient data processing ability. Six figures display on big LCD screen, very striking, which is the essentials of experimental data acquisition
- 0.025 ~ 7200 seconds per time acquisition speed
- 4.1V rechargeable battery, not need to change battery
- 11000 datas storage capacity, easy to carry and collect data
- Magnetic induction button design
- Pressure percentage bar charts shows
- Signal isolation technique, anti-electromagnetic interference and RF technique
- Zero stable technology, automatic temperature compensation technologyn
- Oil and gas pressure data collection, storage and analysis
- Urban water network, heat supply network and gas network pressure data collection, storage and analysis
- Lab pressure test and analyze
- Verify pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge
- Measuring corollary software of pressure monitor and other pressure instruments,
- Accuracy grade can arrive 0.05, which can meet high precision pressure acquisition
- Can work well in corrosive, impact and versatility environment
- Meet the lab and industrial field high precision pressure acquisition requirement
| Item | Spec. |
|---|---|
| Pressure range | -100kpa~250pa~5kpa~250Mpa |
| Accuracy | 0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02% |
| Display | 5-digit dynamic display + percentage indicator |
| Pressure unit | Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2 |
| Overload pressure | 150% FS |
| Destruction pressure | 200% FS |
| Power supply | 4.2V rechargeable lithium battery |
| Temperature | -20 ℃ ~ 60 ℃ |
| Humidity | ≤ 85% RH |
| Calibration environment | 20 ℃ ± 2 ℃ |
| Explosion-proof level | ExiaIICT4 optional |
| IP Grade | IP66 |
| Data record limit | 11000 |
| Process connection | M20 × 1.5 (male), special thread customizable |
| Dimensions | height 170mm, width 110mm, thickness 50mm |
