Tube End Stainless Steel Pipe Beveler Portable Chamfering 240mm For Chemical

tube end Portable pipe Chamfering Stainless Steel Pipe Beveler For chemical

machine performance

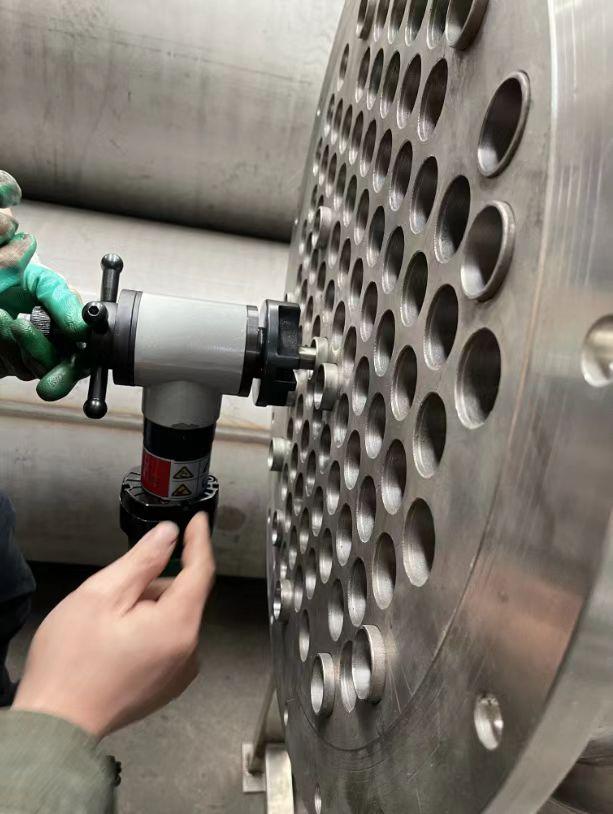

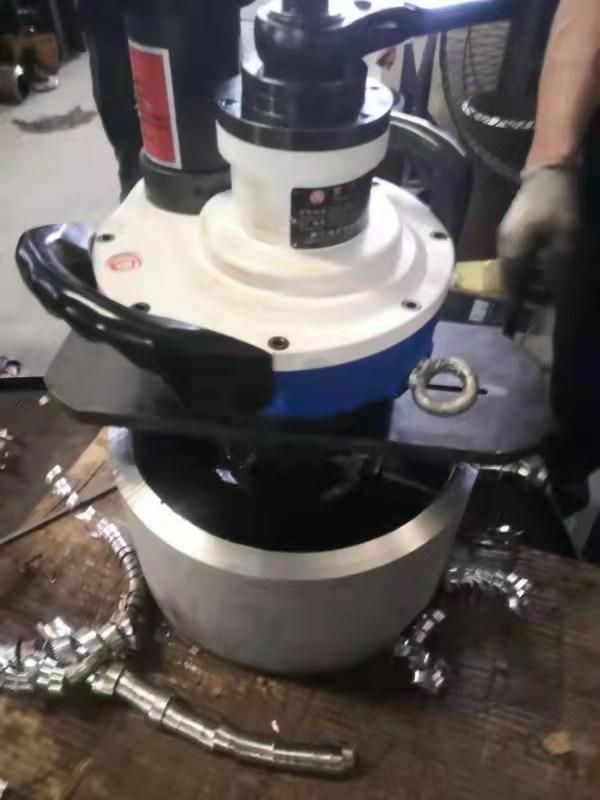

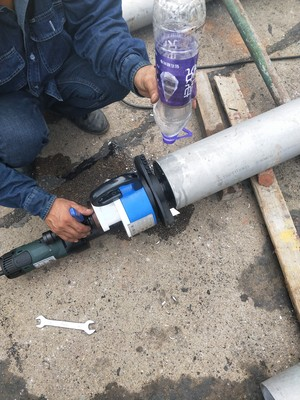

pipe end bever ,machine can meet 18-820mm (internal diameter) pipe processing. machie can do carbon steel , stainless steel and other different material pipe, this series machine through expansion pipe internal wall, by gear reducer reduce , blades holder rotation , for pipe end bevel.  machine can do facing , inside bevel , outside bevel, count boring etc. asccoring to the differnt material use different blades , safe , fast and precision to process.machine high efficiecny! easy to operation.machine widely used in petroleum , chemical , natural gas , food , booiler , nuclear , construction etc industry pipeline install work and pipe repair work.

Tool blades
 two material blades can be choose.

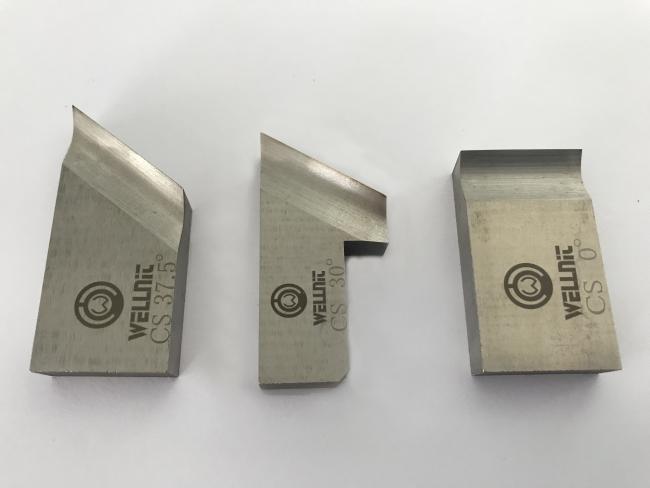

• M2 material

this material blades , we usually to process carbon steel pipe (Q235)
the machine hardness about HRC

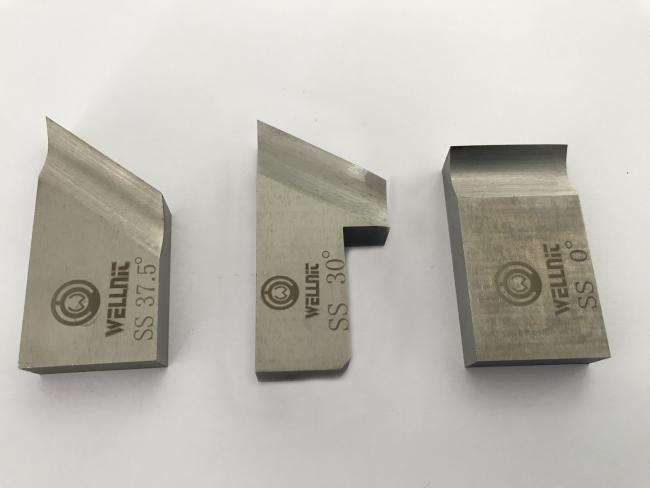

• M42 material

this material blades , we usually to process carbon steel pipe (314)
the machine hardness about HRC
we nornally recommend this material blades
because this material blades have Cobalt,More wear-resistant,Low loss.

tool blades angle can be change.

machine specification

this is I type machine specification
I type , machine thickness up to 20mm, manual feed.
according to bevel angle requirement , choose suitable angle blades.

This is II type machine specification
I type , machine thickness up to 75mm, automatic feed.
according to bevel angle requirement , machine can adjust angle (0-40 degree)
if have other special process requirement, you also can use manual operation

order guide

Please provide more details about your pipe:

1. pipe size(I.D):
2. Pipe thickness:
3. Pipe material:
4. Driven:Electric, Pneumatic

I will Recommend suitable machine to you.
