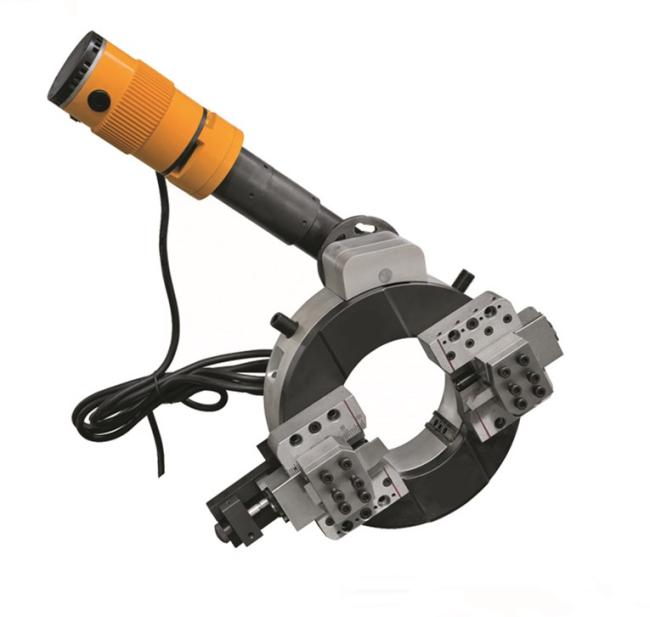

OD Mounted Electric Pipe Cutting And Beveling Machine Aluminum Alloy 220V
OD Mounted Electric Pipe Cutting And Beveling Machine Aluminum Alloy 220V

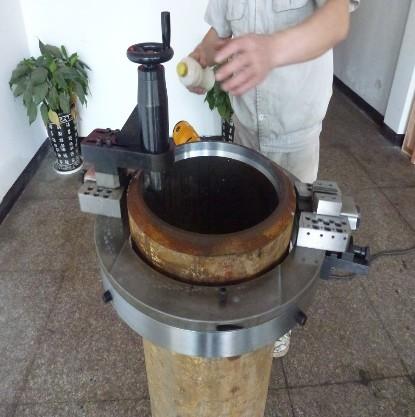

The series machine is ideal for all types of pipe cutting, beveling and end preparation.
The split frame design allows the machine to split in half at the frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping.
The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and
flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56
inches O.D.(DN20-1400), on most wall thicknesses and material.
HYDRAULIC DRIVEN
Wellnit standard hydraulic power unit.
Rated pressure: 13Mpa.
Rated flow: 28L/min.
Hydraulic motor rotation: 140-280rpm.
Max output torque: 380N.M
Timing range: 0-20m/min.
Electric power: 380V,50Hz, 3phase, 7.5KW
Oil capacity: 120L
Hydraulic oil: Winter 32#, summer 46#
Optional:
Anti-explosion hydraulic power unit
Duplex pump hydraulic power station
Diesel power unit
1) Enhanced edition for C series, more compact structure, designed to bevel the pipe in the narrow space.
2) Pipe out-mounted, self centering, secured clamping, easy to operate.
3) Aluminum body, light weight, suitable for working aloft.
4) Bevel the pipe in the narrow space and small size pipe.
5) Equipped with Metabo motor, strong power, longer service life, low noise. Available for the rifled tube by
the special design tool bit.
Main Features:
1. Cold Cutting and Beveling improves safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Tools feed automatically.
5. Fast, Precision, On-site Beveling.
6. Minimal Axial and Radial clearance.
7. Light weight and compact design.
8. Easy set-up & Operation.
Wellnit carbon brush motor, high speed rotation, low-energy consumption electric motor 110V or 220V
optional, electric power: 1.43KW 50-60Hz
Pneumatic motor, no-spark in the process of working, safe and reliable operation. Air compressor is
necessary, can be suitable for inflammable and dangerous working place. Air working pressure:
0.8-1.0Mpa. Air cunsuming flux: 1500-3500L/min.
Numercial controller: High power servo motor, PLC control system, adjustable speed. Also can be
controlled within 50m with wireless, avoid dangerous process 220V single phase or 380V phase, 50-60Hz,
2.0KW. Timing range: 0-20m/min. suitable for thick wall pipe, SS pipe, flange heavy duty cutting, etc.
Main Features:
1. Lower axial and radial clearance.
2. Cold cutting and beveling,No spark.
3. Easy set-up &Robust operation.
4. Process carbon steel ,stainless steel ,alloy etc with U,V,J compound bevel.
5. Widely used in the fields of petroleum,chemical,natural gas,food ,boiler,medicine,power supply
construction and nuclear power.
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCE-305 |
Φ150-305(6”-10”) |
≤30mm |
13r/min |
