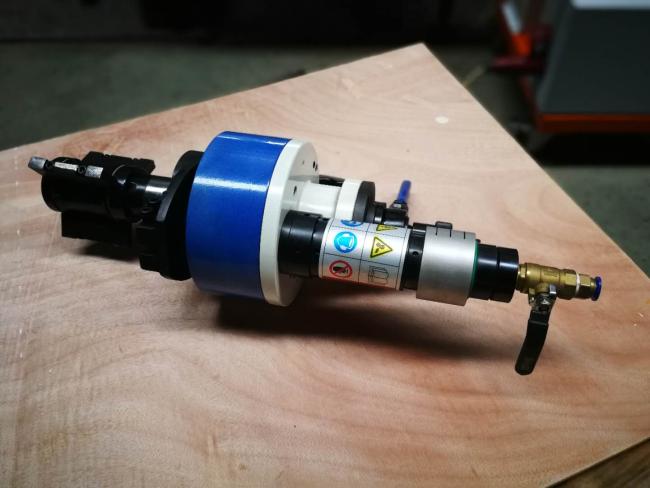

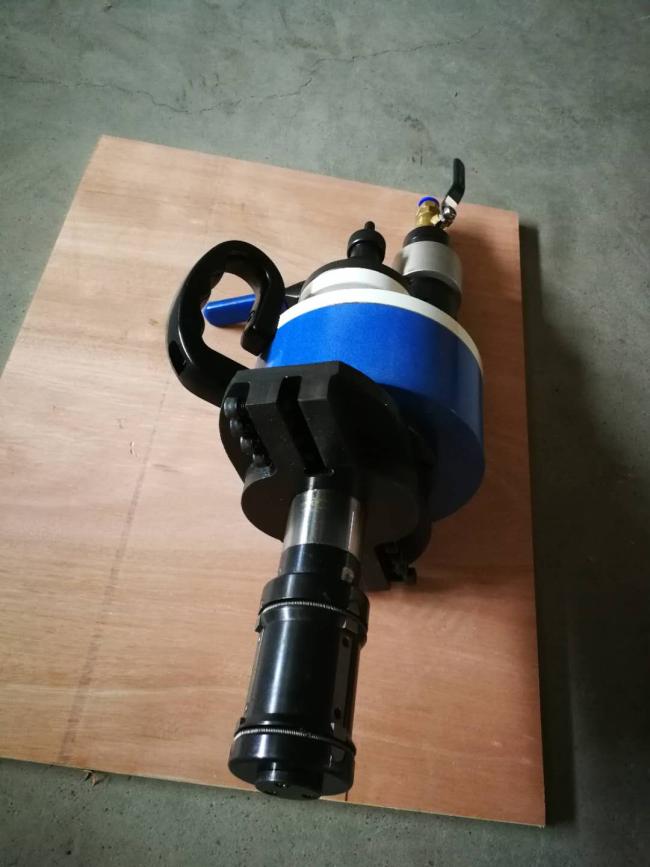

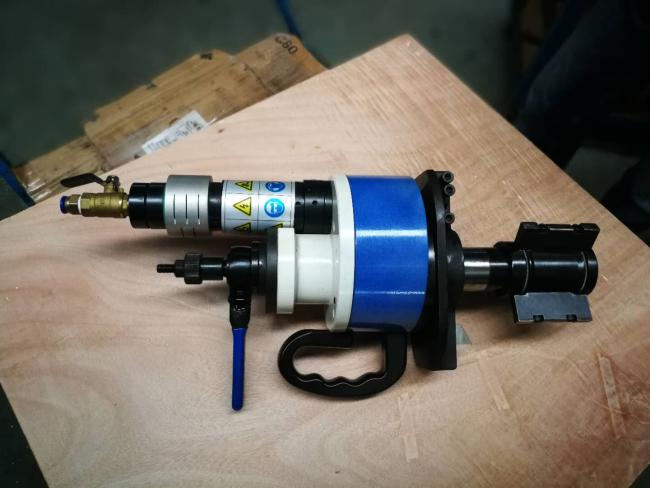

ID Mounted Pneumatic Pipe Beveler Pipe Chamfering Machine Compact Design
ID Mounted Pneumatic Pipe Beveler Pipe Chamfering Machine Compact Design
Main performance of the product
This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry.
The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
It's can work with various material pipe,beveling angle as per your required.ISP Series is ID-Mounted pipe beveling machine. With the advantages: Easy operation, Light Weight, Adraw nut is tightened, Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. It's can work with various material pipe, beveling angle as per your required. This machine could driven by both Electric and Pneumatic.
Below Technical Specifications for Pneumatic Type stainless steel tube polishing Machine :
| Model | Working Range (ID-OD) | Wall Thickness | Rotation Speed | Air pressure | Air Consumption | |
| ISP-30 | Φ18-30 | 1/2''-3/4'' | ≤15 | 60r/min | 0.6MPa | 900 L/min |
| ISP--80 | Φ28-89 | 1''-3'' | ≤15 | 50r/min | 0.6MPa | 900 L/min |
| ISP--120 | Φ40-120 | 1 1/4''-4'' | ≤15 | 38r/min | 0.6MPa | 900 L/min |
| ISP--159 | Φ65-159 | 2 1/2''-5'' | ≤20 | 35r/min | 0.6MPa | 1000 L/min |
| ISP--252-1 | Φ80-273 | 3''-10'' | ≤20 | 16r/min | 0.6MPa | 1000 L/min |
| ISP--252-2 | Φ80-273 | ≤75 | 16r/min | 0.6MPa | 1000 L/min | |
| ISP--352-1 | Φ150-356 | 6''-14'' | ≤20 | 14r/min | 0.6MPa | 1200 L/min |
| ISP--352-2 | Φ150-356 | ≤75 | 14r/min | 0.6MPa | 1200 L/min | |
| ISP--426-1 | Φ273-426 | 10''-16'' | ≤20 | 12r/min | 0.7MPa | 1500 L/min |
| ISP--426-2 | Φ273-426 | ≤75 | 12r/min | 0.7MPa | 1500 L/min | |
| ISP--630-1 | Φ300-630 | 12''-24'' | ≤20 | 10r/min | 0.7MPa | 1500 L/min |
| ISP--630-2 | Φ300-630 | ≤75 | 10r/min | 0.7MPa | 1500 L/min | |
| ISP--850-1 | Φ490-850 | 24''-34'' | ≤20 | 9r/min | 0.7MPa | 1500 L/min |
| ISP--850-2 | Φ490-850 | ≤75 | 9r/min | 0.7MPa | 1500 L/min |
|
Technical Parameter
| ISP-159 Beveling Machine | |
| Voltage | 220-240V |
| Frequency | 50-60Hz |
| Power | 1600W |
| Wall Thickness | ≦20 |
| Working Range | 65-159mm |
| Rotation Speed | 35r/min |
| Net Weight | 32kg |
Non-standard machines are available according to customers’requirement.
Technical characteristics
Features:
- On-site cold Beveling improves safety
- Easy set-up & Operation
- Self-Centering
- Can be positioned in any direction
- Feed ratchet spanner makes tool feed / back easily
- Light weight and compact design
-
Lighter weight,minimal radial space,Easy to operate.
-
A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
-
Driveing Type:Electric-ISE,Pneumatic-ISP.
-
Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
-
Angle:Beveling angle as per your required.
