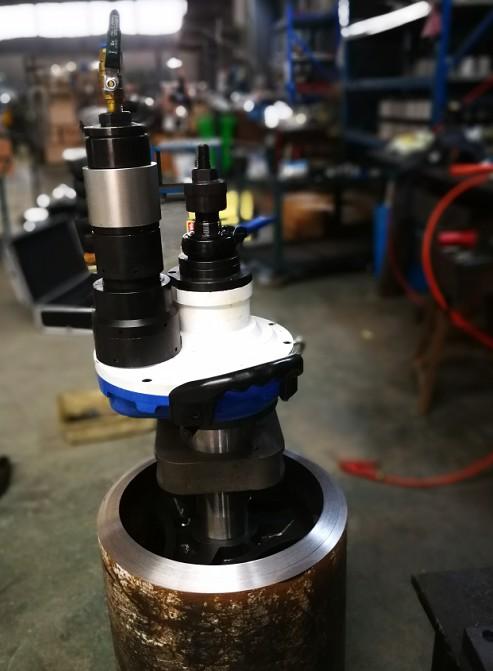

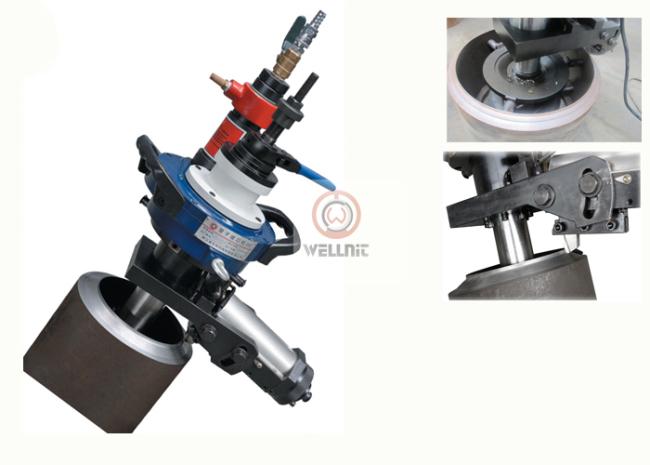

This series is ID Mounted Welding Preparation Pipe Chamfering Tool adopts air motor,main applied at the site of explosive and fireproof,power supply required:0.6-0.8MPa compressed air. With the advantage of:Fast Installation,self centered and working safely. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.

• Lighter weight,minimal radial space,Easy to operate.

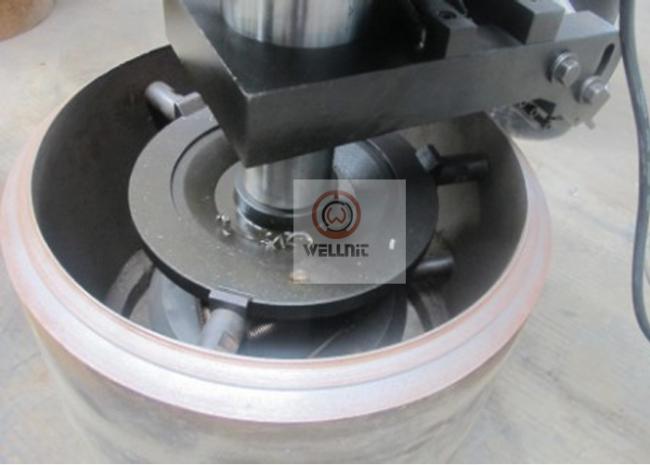

• A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
• Driveing Type:Electric-ISE,Pneumatic-ISP.
• Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
• Angle:Beveling angle as per your required.

• Technical Parameter

• ISP-630-2 Beveling Machine
  Voltage	220-240V
  Frequency	50-60Hz
  Power	1600W
  Wall Thickness	≦75
  Working Range	300-630mm
  Rotation Speed	10r/min
  Net Weight	132kg
